Good Neighbour® Cyclonic
Stratco
SKU: Good-Neighbour-Cyclonic
Good Neighbour Cyclonic Fencing is designed for use in cyclone prone areas. It combines style with high strength. Clean, uncluttered lines are enjoyed by neighbours on both sides of the fence due to its easy to build modular panels.Image gallery
Strong, Durable and Stylish Fencing
Fencing that is built to withstand the forces of nature
Stylish fencing that has been designed and approved for use in areas with cyclonic conditions. Good Neighbour Cyclonic Fencing is easy to install. Once the fence posts have been set in concrete, the fence sheets are easily placed into profiled steel tracks and posts. This modular system is very strong, easy to build and eliminates the need for a central rail, so it looks great on both sides of the fence.
Due to its modular nature, Good Neighbour Cyclonic Fencing is ideal for use over sloped or undulating sites. The panels can be 'stepped' to follow the contour of the land.
Available Colours:
Brochures & Installation Guides
Good Neighbour Cyclonic Fence Styles

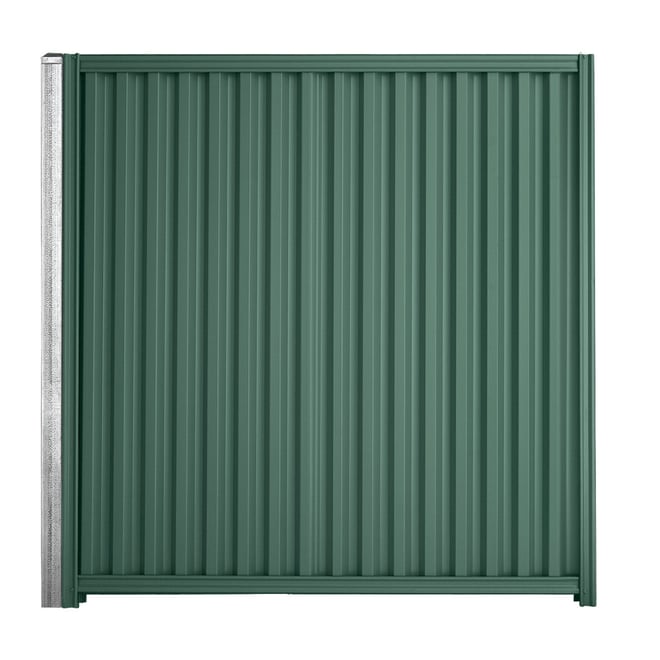

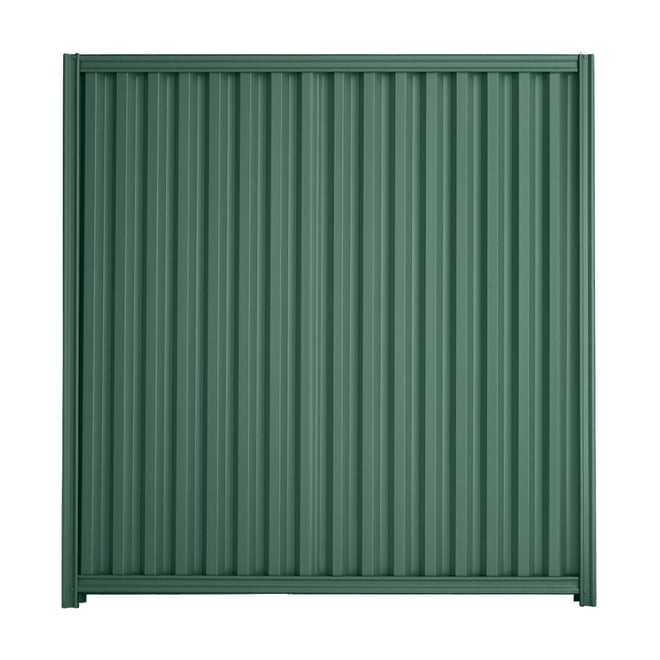

Superdek® Fencing
As a high tensile, steel profile sheet, Superdek is suitable for fencing applications because of its strength and its modern, good looking appearance. The Superdek profile has been the number one fence sheet choice for Good Neighbour fencing for many years and will be around for many more.

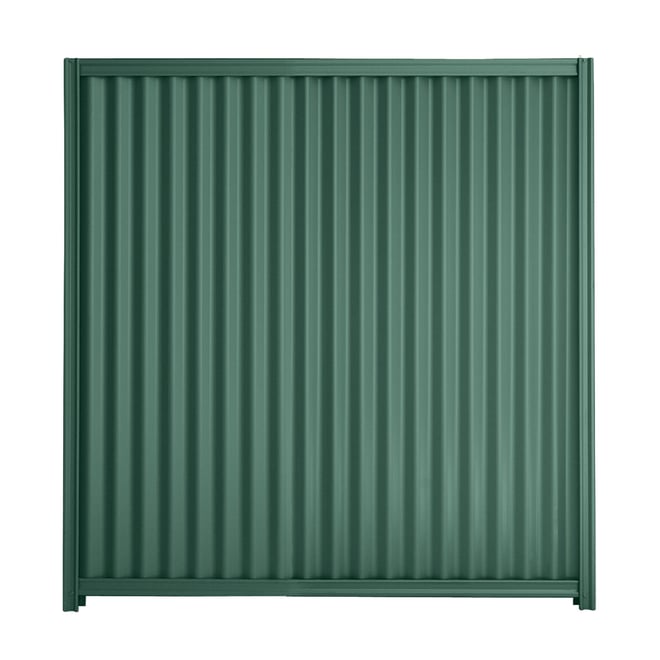

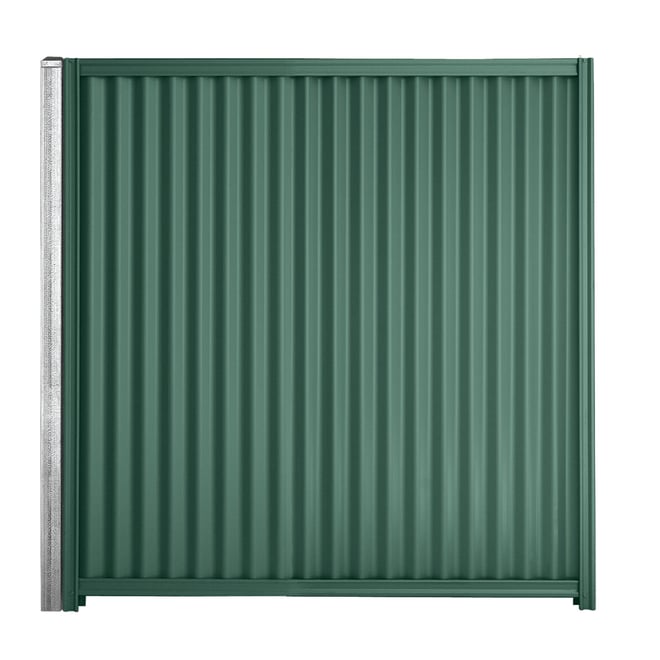

CGI Corrugated Fencing
CGI corrugated is a timeless classic. It is a versatile building material that has always been popular in domestic fencing. Its soft flowing lines complement both contemporary and colonial styled homes and make CGI an ideal fence as either a feature or a backdrop to your garden.

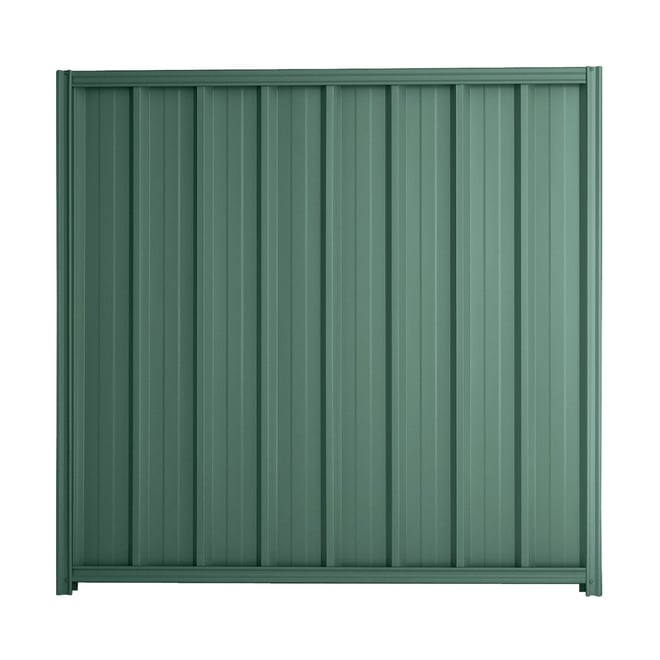

Smartspan® Fencing
(only available in WA, Region D areas)
Smartspan is commonly used as industrial wall cladding and for roofing applications that require a long span. However, its inherent strength and appearance make it a smart choice for fencing. Smartspan will stand the test of time, while offering bold, attractive lines to neighbours on both sides.
Range of Fencing Options
- Available as Standard Panels or as Heavy Duty Panels that are reinforced with galvanised steel 50x50mm posts.
- Four fence heights of 900mm 1200mm, 1500mm and 1800mm are available.
- Choose from a range of fence sheet profiles; Superdek®, Corrugated and Smartspan® (Smartspan is only available in WA, Region D areas).
- Pick from a wide range of attractive fencing colours.
Fence panel widths vary depending on the sheet profile chosen. Superdek is 1590mm wide, Corrugated is 1630mm wide and Smartspan is 1470mm wide. For heavy duty panels, add an extra 50mm for the additional steel post.
Quality Stratco Fencing
Manufactured from high quality zinc/al coated steel with a pre-painted colour finish. All parts and accessories are galvanised for a long usable life.
Good Neighbour Cyclonic Fencing has been tested to comply with the strength requirements for cyclonic areas. Post and footing sizes are based on calculations using design wind pressures from the relevant Australian standards. Good Neighbour Cyclonic Fencing is approved and Deemed to Comply by the Darwin Building Board.
Region C
| Region C - Required Fence Panel Type | |||
| Terrain Category | Fence Height | ||
|---|---|---|---|
| 1200mm | 1500mm | 1800mm | |
| 3 and 4 | Standard | Standard | Heavy Duty |
| 2.5 | Standard | Heavy Duty | Heavy Duty |
| 1 and 2 | Standard | Heavy Duty | Heavy Duty |

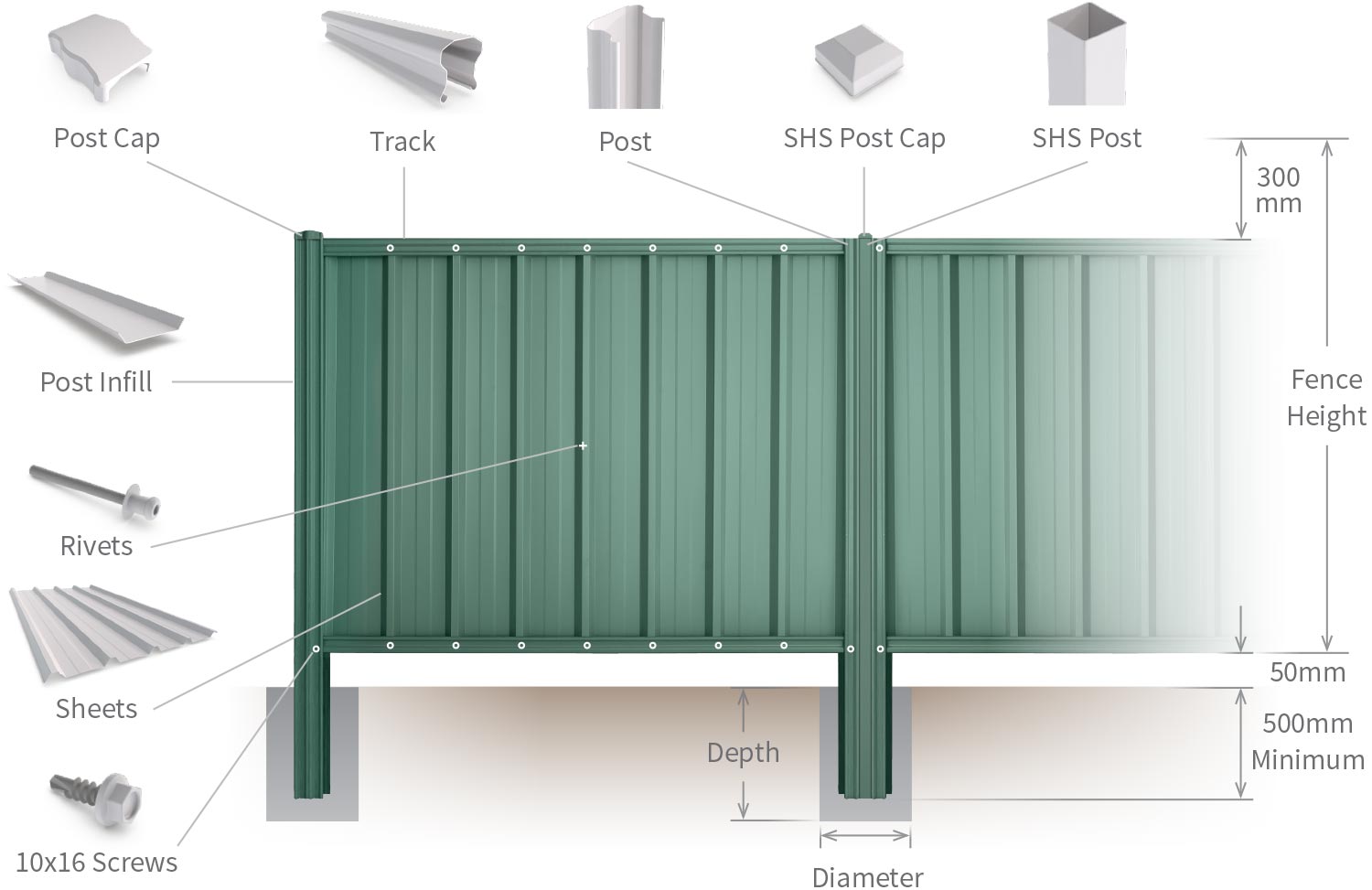

Standard Panel
- 2 Standard posts
- 2 Infill sheets
- Top and bottom Track
- 13 Self drilling 12x20mm tapping screws
- 18 Self drilling 10x25mm tapping screws
- 1 Rivet
Heavy Duty Panel
- 2 Standard posts
- 1 SHS post with cap
- 2 Infill sheets
- Top and bottom Track
- 18 Self drilling 12x20mm tapping screws
- 18 Self drilling 10x25mm tapping screws
- 1 Rivet
| Region C - Footing sizes (diameter x depth) | |||
| Terrain Category | Fence Height | ||
|---|---|---|---|
| 1200mm | 1500mm | 1800mm | |
| 3 and 4 | 200 x 600mm | 200 x 700mm | 200 x 700mm |
| 2.5 | 200 x 600mm | 200 x 700mm | 200 x 800mm |
| 1 and 2 | 200 x 600mm | 200 x 700mm | 200 x 800mm |
All footings are circular and suitable for firm natural sandy clay. Increase the depth by 100mm for compact sand. Minimum foundation bearing capacity to be 100kPa.
NOTE: Deemed to Comply drawing number M/802. Darwin Building Board approved.
Region D
| Region D - Required Fence Post Type | |||
| Terrain Category | Fence Height | ||
|---|---|---|---|
| 900 and 1200mm | 1500mm | 1800mm | |
| 2 | Post Type 1 | Post Type 2 | Post Type 3 |
| 2.5 | Post Type 1 | Post Type 2 | Post Type 3 |
| 3 | Post Type 1 | Post Type 2 | Post Type 3 |
- Post Type 1 = 1 RHS 75x50mm, 3mm thick post and two standard posts.
- Post Type 2 = 1 SHS 75x75mm, 3.5mm thick post and two standard posts.
- Post Type 3 = 1 RHS 125x75mm, 3mm thick post and two standard posts.
Panel Components
- 2 Standard posts
- 1 RHS or SHS post
- 2 Infill sheets
- Top and bottom Track
- Two track stiffeners
- 16 Self drilling 12x20mm tapping screws
- ** Self drilling 14x22mm tapping screws
- 1 Rivet
** The number of screws depends on the fence height:
900mm high = 18 screws, 1200mm high = 20 screws, 1500mm high = 22 screws, 1800mm high = 24 screws.
| Region D - Footing sizes (diameter x depth) | |||
| Soil Type | Fence Height | ||
|---|---|---|---|
| 900 and 1200mm | 1500mm | 1800mm | |
| Sandy | 300 x 900mm | 300 x 1100mm | 300 x 1200mm |
| Sandy Clay | 300 x 650mm | 300 x 800mm | 300 x 900mm |
All footings are circular. Posts within a distance of 2 x Height from any free end, increase the footing depth by 200mm.
Good Neighbour Cyclonic Accessories
Complete your Good Neighbour Cyclonic Fence with a range of accessories from Stratco.
Note: Some components are optional and not required in all configurations
