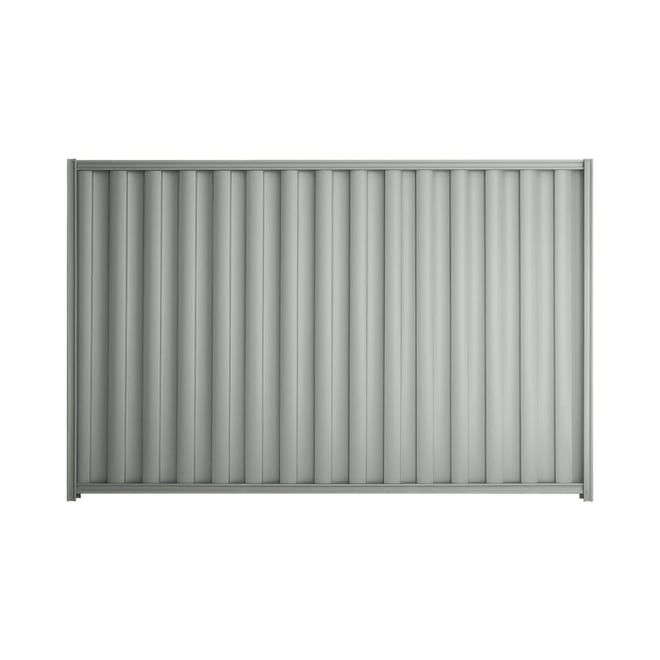

Good Neighbour® Wavelok® Fence Panel
StratcoSKU: GNWPDCTP18GGGG
Options marked with * are currently unavailable online.
About this product
With a bold, striking appearance, Wavelok fence sheets have distinct modern lines that compliment the strong and attractive Good Neighbour Fencing. Easy to build panels that look great on both side of the fence.
Image gallery
Fencing with Style and Strength
Fashionable, easy to build fencing that looks great around the home.
Good Neighbour's strength and style is achieved by using steel fence sheets that fit into profiled fence tracks and fence posts. This simple design removes the need for fence rails in the middle of the fence. Good Neighbour Fencing looks identical on both sides, is very strong and easy to build.
Available Colours
Brochures & Installation Guides
Flexible Fencing Design
The modular nature of Good Neighbour Fencing means that it can be used on flat sites or modified to suit sloped and undulating land. A special order for longer top and bottom tracks can allow for unusual designs. If the sheets are cut on-site to the same angle as the slope, panels can be constructed to follow the contour of the land. Alternatively, the Good Neighbour Fence panels can be 'stepped' over undulating land.
Good Neighbour Fencing is perfect for side, rear and front fence applications and can also be used for garden screens or hiding compost areas. End panels can also be 'tapered' for visual effect and to reduce wind pressure on the fence.
Simple Installation
Installing a Stratco Good Neighbour Fence is the perfect do-it-yourself project. All the installation advice, tools and accessories that you need to complete your fence are available at Stratco. Alternatively, we would be happy to arrange a free measure and quote from one of our Authorised Fencing Dealers.
Wavelok® Fencing
Stratco has specifically designed the Wavelok profile for fencing. It has a bold, striking appearance that looks identical on both sides of the fence. Its distinct flowing lines appear similar to fence palings. It is visually attractive yet provides the strength and security necessary for fencing.
Fencing Colours
Stratco Good Neighbour Fences are available in a full spectrum of double-sided colours. Mix and match the colours of the fence sheets, tracks and fence posts for an individual style.
Fencing Accessories
All the accessories you need to complete your Good Neighbour Fence are available at Stratco. Accessories include post caps, and single and double fence gates.
Good Neighbour Fence Topper
The easy and attractive way to increase the height of a Good Neighbour Fence. Good Neighbour Fence Toppers are available in a range of attractive colours to match your fence. They powder coat painted in Australia with a 10 year warranty on the finish.
Screen Top Fencing
You can have the added privacy of a higher Good Neighbour Fence, while still allowing the light and breeze to flow through, with the Stratco Good Neighbour range of screen top fencing. The screen top is attractive and durable. It is available in a range of colours and made from UV treated plastic for a long life. The screen top is available as an option with your new fence or as a 300mm extension to your existing Good Neighbour Fence.
Fence Maintenance
Your Good Neighbour Fence will maintain its good looks for even longer with a simple wash and wipe down using a soft broom. Refer to the 'Selection, Use and Maintenance' brochure for more advice.
Stratco only manufacture fencing of the finest style and quality, so you can have confidence that your Stratco fence will provide privacy and security, with looks to complement your home for many years to come.
Maximum Wind speeds
The tables below provide maximum wind speeds for non-cyclonic and cyclonic regions. For cyclonic areas, the only suitable cladding is Superdek, Smartspan and Wavelok. Fences with no free ends, or with internal sections that are further than two panels from a free end, can be designed using the maximum wind speed for tapered ends. Corners or openings with solid fence gates are not classed as a free end. If you are unsure of your wind speed refer to the 'Determining Wind Speed' section.
900mm High Fence
900mm High Fence or 1200mm High Fence with a Screen Top | ||||||||
Style | 3 Sheet Panel | 3 Sheet Panel and 50 SHS Posts |
2 Sheet Panels | 2 Sheet Panel and 50 SHS Posts |
||||
---|---|---|---|---|---|---|---|---|
Tapered End |
Square End |
Tapered End |
Square End |
Tapered End |
Square End |
Tapered End |
Square End |
|
Standard | W50 | W50 | W60 | W55 | W60 | W60 | W60 | W60 |
Screen Top | W50 | W41 | W60 | W41 | W60 | W55 | W60 | W60 |
1200mm High Fence
1200mm High Fence or 1500mm High Fence with a Screen Top | ||||||||
Style | 3 Sheet Panel | 3 Sheet Panel and 50 SHS Posts |
2 Sheet Panels | 2 Sheet Panel and 50 SHS Posts |
||||
---|---|---|---|---|---|---|---|---|
Tapered End |
Square End |
Tapered End |
Square End |
Tapered End |
Square End |
Tapered End |
Square End |
|
Standard | W50 | W41 | W60 | W41 | W60 | W55 | W60 | W60 |
Screen Top | W50 | W33 | W55 | W41 | W60 | W41 | W60 | W55 |
1500mm High Fence
1500mm High Fence or 1800mm High Fence with a Screen Top | ||||||||
Style | 3 Sheet Panel | 3 Sheet Panel and 50 SHS Posts |
2 Sheet Panels | 2 Sheet Panel and 50 SHS Posts |
||||
---|---|---|---|---|---|---|---|---|
Tapered End |
Square End |
Tapered End |
Square End |
Tapered End |
Square End |
Tapered End |
Square End |
|
Standard | W41 | W33 | W55 | W36 | W60 | W36 | W60 | W60 |
Screen Top | W33 | W28 | W41 | W33 | W41 | W33 | W60 | W41 |
1800mm High Fence
1800mm High Fence or 2100mm High Fence with a Screen Top | ||||||||
Style | 3 Sheet Panel | 3 Sheet Panel and 50 SHS Posts |
2 Sheet Panels | 2 Sheet Panel and 50 SHS Posts |
||||
---|---|---|---|---|---|---|---|---|
Tapered End |
Square End |
Tapered End |
Square End |
Tapered End |
Square End |
Tapered End |
Square End |
|
Standard | W36 | W28 | W41 | W33 | W41 | W33 | W60 | W41 |
Screen Top | W33 | - | W36 | W28 | W33 | W28 | W41 | W33 |
2100mm High Fence
2100mm High Fence or 2400mm High Fence with a Screen Top | ||||||||
Style | 3 Sheet Panel | 3 Sheet Panel and 50 SHS Posts |
2 Sheet Panels | 2 Sheet Panel and 50 SHS Posts |
||||
---|---|---|---|---|---|---|---|---|
Tapered End |
Square End |
Tapered End |
Square End |
Tapered End |
Square End |
Tapered End |
Square End |
|
Standard | W28 | - | W36 | W28 | W33 | W28 | W41 | W33 |
Screen Top | - | - | W28 | - | W28 | - | W28 | W28 |
Internal panels, (panels that are not part of a free end) can be designed using the maximum wind speeds for tapered ends. For three sheet panels with SHS posts the post needs to be 1.6mm thick. For two sheet panels with SHS posts the post needs to be 3mm thick.
Footings
The sizes of post footings are dependant on the wind speed, soil type and the height of the fence. The following tables can be used to select the correct footing. Footings shall be founded in natural soil only. Concrete shall have a minimum 28 day characteristic strength of 20MPa (Grade 20). The top of the concrete should be shaped to direct water away from the posts. For the three footings adjacent to a free end and posts supporting a gate, the footing size will need to be increased in depth by 100mm. All posts are to be embedded at least 500mm into the footing.
Footing Type Per Wind Speed
Footing Type Per Wind Speed | |||||||
Height (mm) | W28 | W33 | W36 | W41 | W50 | W55 | W60 |
---|---|---|---|---|---|---|---|
900 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
1200 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
1500 | 1 | 1 | 2 | 2 | 3 | 3 | 3 |
1800 | 1 | 2 | 3 | 3 | 5 | 4 | 5 |
2100 | 2 | 3 | 4 | 5 | 6 | 6 | 6 |
2400 | 3 | 4 | 5 | - | - | - | - |
Size of Footings
Size of Footings (Diameter x Depth in mm) Per Soil Condition | |||
Type | Sandy | Sandy Clay | Clay |
---|---|---|---|
1 | 250 x 700 | 200 x 600 | 200 x 600 |
2 | 250 x 800 | 200 x 600 | 200 x 600 |
3 | 250 x 900 | 200 x 650 | 200 x 650 |
4 | 250 x 950 | 200 x 700 | 200 x 650 |
5 | 250 x 1000 | 200 x 750 | 200 x 700 |
6 | 250 x 1100 | 200 x 800 | 200 x 750 |
Fence Post Spacings
Fence Post Spacings (mm) | |||
3 Sheets | 3 Sheets SHS | 2 Sheets | 2 Sheets SHS |
---|---|---|---|
2350 | 2400 | 1590 | 1640 |
Posts are supplied 545mm longer than the height of the fence.
Good Neighbour Fencing Accessories
Complete your Good Neighbour Fence with a range of accessories from Stratco including post caps, a screen top extension and single and double fence gates.
Note: Some components are optional and not required in all configurations
Good Neighbour Gates
Gate post openings - Single 840mm - Double 3255mm
