Smoothline Gutter

Stratco

SKU: SLGAZ

$15.00
$12.50 per linear meter
Click & Collect
Click & Collect is unavailable for this item.
Delivery
Delivery currently unavailable to Pialba.

Free Project Quote

Installation options available^

Scroll Down For DIY Instructions

About this product

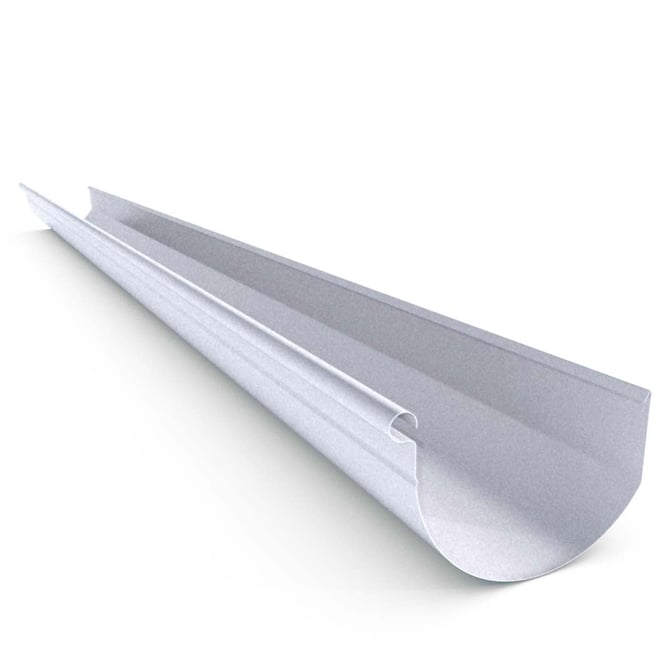

Featuring a smooth, attractive profile with a curved front and a flat back, Smoothline Gutter is suited to both modern and traditional homes. Smoothline Gutter has internal brackets for a clean appearance, it is easy to install and maintain.

For trade and project quantity discounts:

Smooth, Flowing Curves

Adaptable, elegant and practical guttering

Smoothline Gutter features a smooth, curved front with a flat back for stability. The curved profile of Smoothline Gutter is not only attractive, it also reduces the risk of debris build up due to its self cleaning nature.

Available in un-painted zinc/al or in a large range or pre-painted colours, Smoothline Gutter will compliment both modern and traditional homes.

Slots are available in the front of the gutter to allow excess water to overflow. Complete your project with an extensive range of Smoothline Gutter accessories including mitres, stop ends and brackets.

Available Colours

Gutter Accessories

Gutters Guttering Gutter Smoothline Accessory 90 Angle

90° External and Internal Cast Angle

Pre-made cast internal and external corners provide an easy solution to gutter mitres. They are neat, practical and aesthetically pleasing, providing a clean and modern look around the corners of the building.

Gutters Guttering Gutter Smoothline Accessory 90 Angle Two Piece

90° Two Piece Cast Angle

Available in NSW only, two piece cast angles provide an easy and flexible solution to gutter mitres. The gutter is clamped into position instead of being riveted to allow for expansion and contraction of the gutter at the corner.

Gutters Guttering Gutter Smoothline Accessory Mitres

Internal and External Mitres

Gutter mitres manufactured from the same gutter profile can be supplied, ready to use on site. These mitres provide a continuous line around the corners and can be made to any angle required to suit the design of the building.

Gutters Guttering Gutter Smoothline Accessory Return Stop End

Return Stop End

Return stop end ready to be installed on site to suit the projects requirements.

Gutters Guttering Gutter Smoothline Accessory Stop End

Stop End

Individual stop ends can be supplied in left and right hand ready for on site installation.

Gutters Guttering Gutter Smoothline Accessory Bracket Strap

Internal Str-8-line Strap

Internal gutter straps hold the face of the gutter into position. They are installed internally at 1.2 metre intervals and are not visible on the external gutter face.

Gutters Guttering Gutter Smoothline Accessory Bracket Timber

Timber Fix Clip

Timber fix clips are used on timber fascia, a simple solution for replacing existing gutter on a building.

Note: Availability is state specific, please check prior to ordering.

Specifications

Specifications
Tensile (MPa) BMT (mm) Type Capacity (mm²) Total Cross Section
Area (mm²)
G550 0.42 Standard 8748 10124
Slotted 6961 8332

Note: Calculation of the effective cross sectional area ‘Capacity’ is based on the requirements of section 3.8 AS/NZS 2179.1:1994.


Dimensions

Gutters Guttering Gutter Smoothline Profile

Gutters Guttering Gutter Smoothline Profile 2
Dimensions (mm)
A 51
B 138
C 104
