About this product

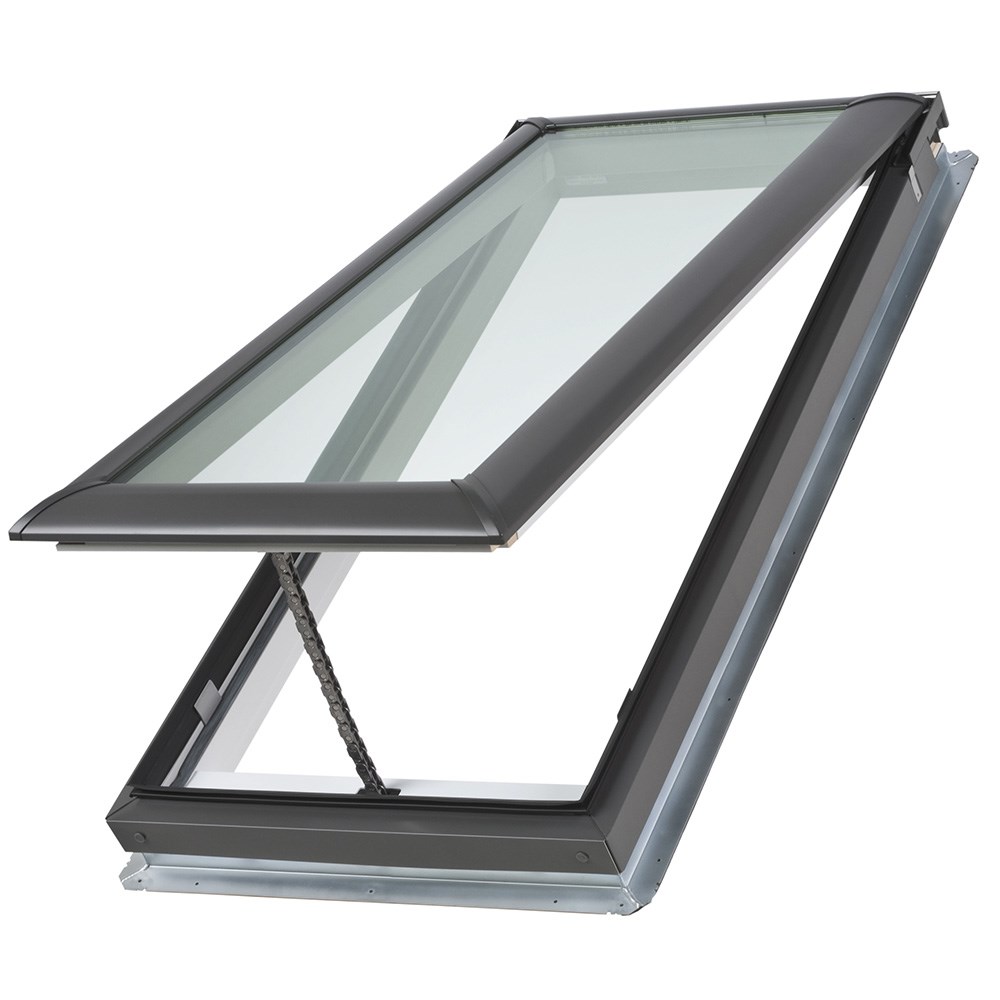

The VELUX Manual Skylight range offers manually operated units for pitched roofs in both sheds and homes. Open it for fresh air and heat release while it fills the space with natural light. Keep it simple as a plain skylight, or frame and line the shaft to create a standout centrepiece. Energy-efficient glazing and optional blinds (sold seperately) help manage heat transfer and glare for year-round comfort.
- Blocks approximately 80% of heat
- Operated by a winder handle for reachable windows (HB-0254). Extended winder handles are available in 600mm (HB-0253) & 1450-2850mm (HB-0359)
- Insect screen fitted as standard
- 99% reduction of harmful UV Spectrum (UVA & UVB)
- Hail tested
- Code Marked to Australian Standards
- Tested to guarantee reliability and meet all revelant Australian standards
- Blackout Blind (HB-0295) or Light Filtering Blind (HB-0371) can be added.
- Skylight flashing kit (HB-0366) required, with custom flashing options also available. Our team can assist with the best solution for your project
- Skylight flashing kit suitable for metal roofs with a profile up to 30mm , alternatively a flashing kit for slate roofs is also available (HB-0324).
| Technical Specifications | |
|---|---|
| Height | 100mm |
| Width | 1140mm |
| Length | 1180mm |
| Colour | White internal frame, grey external cappings |
| UV Protection | 0.99 |
| Minimum Roof Pitch | 15 degrees |
| Maximum Roof Pitch | 60 degrees |
