ATS-3 Syncro Sectional Door Opener

ATA

SKU: HB-6302

Unavailable in your state.

About this product

Simply smart! This connected opener combines premium features with quick and easy installation. No external hub required. Syncro is smart out of the box. Ideal for heavy custom doors up to 236kg. Includes two PTX-6 Transmitters and one WTX-6 Wall Button.

  • Syncro takes the convenience of automation a step further. You can monitor , control and schedule access to your garage door anytime, anywhere, with your smart phone. With fast opening speed, Syncro makes getting in and out of the garage a breeze. This top of the range model includes enhanced safety features and is backed by a 7-year warranty
  • Syncro boasts a supercharde motor with stop/soft start functionality, making your garage door opening exceptionally fast yet quiet
  • For your peace of mind, Syncro features an auto-reverse function which forces the door to reverse if it encounters an obstacle. Syncro will also detect if an intruder is attempting to force the door up and will resist entry. Patented remote control technology ensures secure and reliable home access
  • Smart technology can save you time and effort. No need to hide or share keys with cleaners, guests or the delivery person, you can control and schedule access to your garage remotely from your smart phone. Syncro will even tell you if you if you left the garage door open, sending you a notification when the door is operated, so you know exactly when your children got home
  • Ideal for most sectional and tilt doors, including doors with architectural cladding up to 235kg
  • 7 Year/20,000 Cycle warranty giving peace of mind

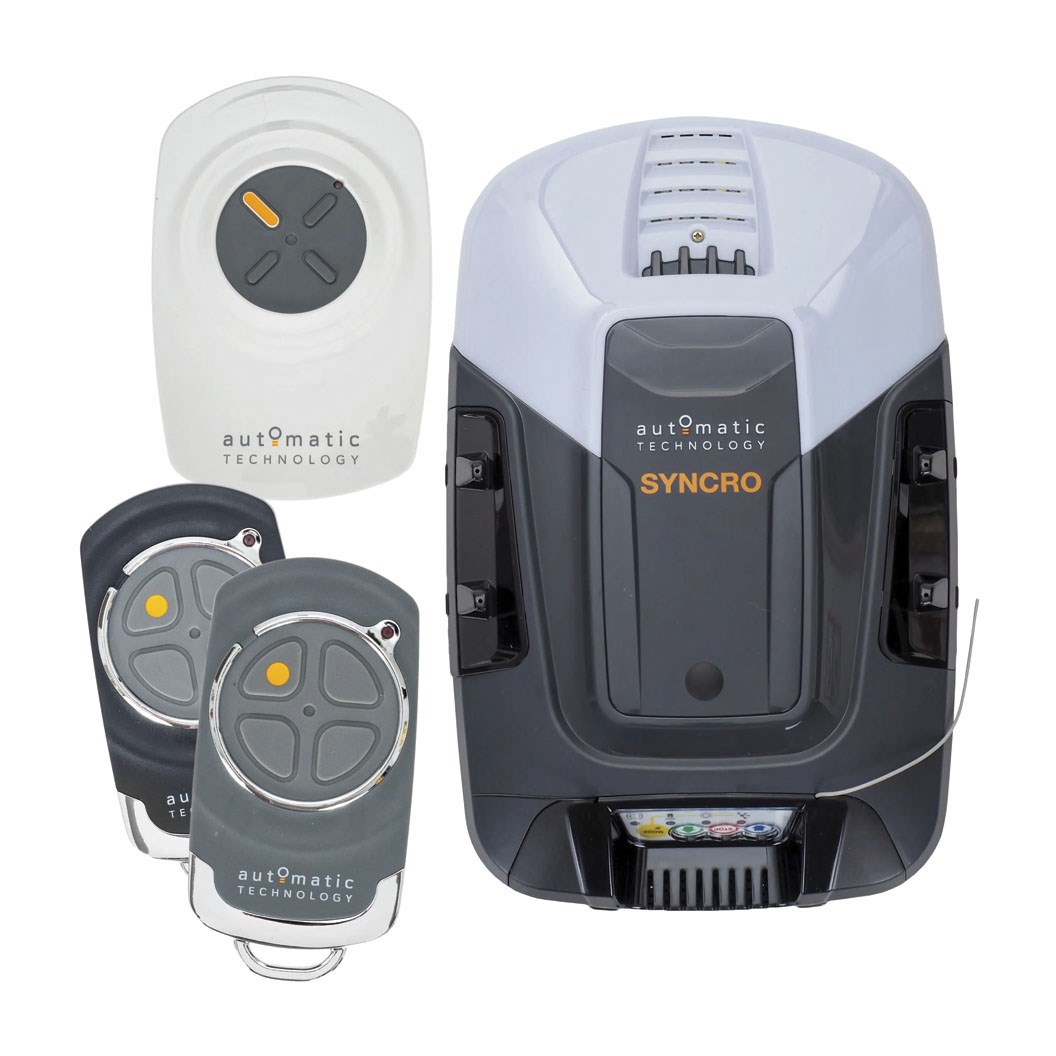

  • Kit includes; 1 x ATS-3 SYNCRO Powerhead, 1 x ATA Steel Belt rail, 2 x PTX-6v1 Transmitters (1 x Black, 1 x Grey), 1 x WTX-6v1 Wall Button Transmitter, 1 x Mounting Hardware & 1 x Instruction Manual
Technical Specifications
Rated Voltage Range230V - 240V A.C.
Rated Frequency50Hz / 60Hz
Rated Power Input165W
Max. Door Opening Area18m2
Max. Door Weight236kg (Door must be well balanced and able to be operated by hand, as per warranty conditions and AS/NZS 4505:2012)
Min. Headroom57mm
Rated Operating Time4mins
Rated Temp+5°C to +40°C
Short Term Peak Force1100N
Rated Load400N
Nominal Force200N (20kg)
Receiver TypeMulti-frequency UHF FM (433.47, 433.92 & 434.37MHz)
Receiver Code Storage Capacity64 x 4-button transmitters
Transmitter BatteryCR2032 (3V)
Main LightLED (Light Emitting Diodes)
Network ConnectivityNetwork ready, Smart Hub already installed
Shipping Weight9.5kg
Shipping Width330mm
Shipping Height250mm
Shipping Length400mm
