About this product

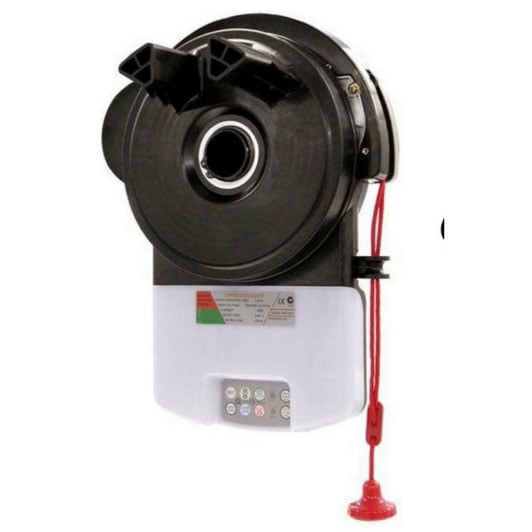

The predecessor to the ATA GDO-6v4 is a proven performer offering basic, no fuss functionality. It operates rolling doors up to 110kg.
- Easy to install, as well as quiet and efficient to run.
- Built in intelligent features such as Automatic Door profiling and safety reversing if the door is obstructed.
| Technical Specifications | |
|---|---|
| POWER - Input Voltage | 230-240V a.c. 50Hz |
| POWER - Standby Power | 2.2W |
| POWER - Motor Type | 24V d.c. Permanent Magnet |
| POWER - Motor Power | 100W |
| POWER - Controller Voltage | 24V d.c. |
| DOOR SIZES - Maximum Door Weight | 100kg |
| DOOR SIZES - Max Door Opening | 5500mm wide X 3000mm high |
| DOOR SIZES - Opener Limits | 3.0 turns of Door Drum Wheel |
| TRANSMITTER SYSTEM - Code Generation | Non-linear encryption algorithm |
| TRANSMITTER SYSTEM - Coding System | TrioCode™️128, code hopping |
| TRANSMITTER SYSTEM - Coding Type | Code hopping |
| TRANSMITTER SYSTEM - Number of combinations | Over 4.29 billion random codes |
| ADDITIONAL FEATURES - Courtesy Light | Festoon Type - 15W 24V d.c. |
| ADDITIONAL FEATURES - Controller Fuse | 10A slow blow |
| WARRANTY | 2 years/5,000 cycles |
