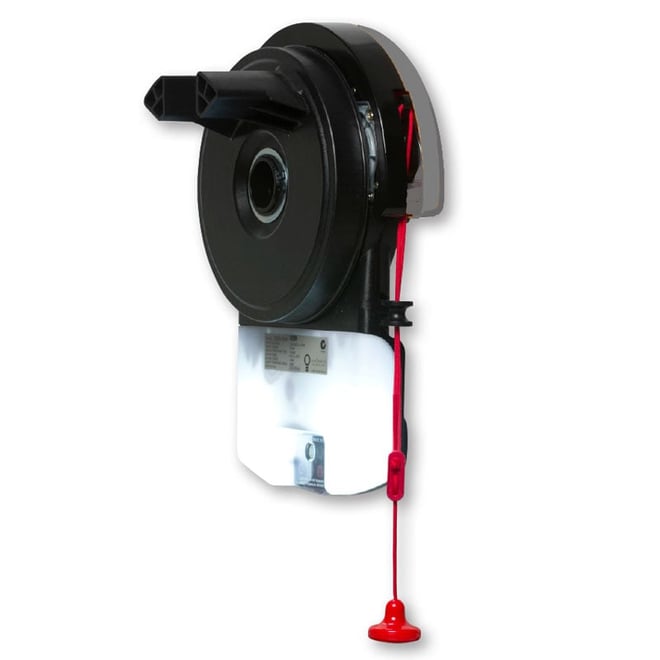

GDO-6v4 EasyRoller Series 2 Roller Door Opener
Automatic Technology
SKU: RDOPER2GDO-6V4
About this product
This trusted opener from ATA is the easy choice for the vast majority of residential rolling doors reliably operating rolling doors up to 110kg.
- Designed to deliver a slim profile, reliability, security and convenience.
- It is compatible with the Smart Phone Control Kit and Wireless Safety Beams.
| Technical Specifications | |
|---|---|
| POWER - Input Voltage | 230-240V a.c. 50Hz |
| POWER - Transformer Rating | 100VA |
| POWER - Standby Power | 2.2W |
| POWER - Motor Type | 24V d.c. Permanent Magnet |
| POWER - Motor Power | 100W |
| POWER - Short-term Lifting Force | 600N |
| DOOR SIZES - Maximum Door Weight | 110kg |
| DOOR SIZES - Rated Door Area | 16.5m² |
| DOOR SIZES - Typical Travel Speed (door dependent) | 130mm/sec |
| TRANSMITTER SYSTEM - Receiver/Transmitter Frequency | Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz) |
| TRANSMITTER SYSTEM - Coding System | TrioCode™️128, code hopping |
| TRANSMITTER SYSTEM - Code Combinations | 3.4x10^38 code combinations |
| TRANSMITTER SYSTEM - Transmitter Capacity (x4-butten registers) | 64 |
| ADDITIONAL FEATURES - Courtesy Light | 2 x LED |
| ADDITIONAL FEATURES - Safety Beam Compatibility | 2 x Wireless or 2-wire Safety Beams |
| WARRANTY | 7 years/20,000 cycles |
| NETWORK COMPATIBLE | Ready for Smart Phone Control Kit |
