About this product

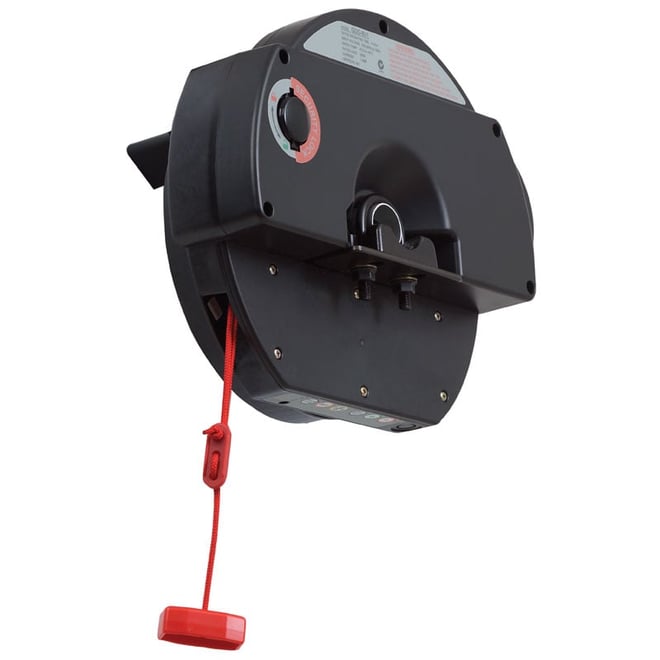

With a rough IP24 rated weather resistant housing, the Shed Master from ATA is perfect for exposed applications like perimeter doors and open carports.
- Includes a Weather resistant opener, two TriCode 128 transmitters, and keyed lockout.
- The opener that goes where other's wont.
| Technical Specifications | |
|---|---|
| POWER - Input Voltage | 230-240V a.c. 50Hz |
| POWER - Transformer Rating | 72VA |
| POWER - Standby Power | 2.8W |
| POWER - Motor Type | 24V d.c. Permanent Magnet |
| POWER - Motor Power | 100W |
| POWER - Short-term Lifting Force | 550N |
| DOOR SIZES - Typical Door Speed | 100mm/sec |
| DOOR SIZES - Rated Door Area | 15m² |
| TRANSMITTER SYSTEM - Transmitter Type | TrioCode™️128, code hopping |
| TRANSMITTER SYSTEM - Receiver/Transmitter Frequency | Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz) |
| TRANSMITTER SYSTEM - Coding System | Code hopping (non-linear encryption algorithm) |
| TRANSMITTER SYSTEM - Code Combinations | 3.4x10^38 code combinations |
| TRANSMITTER SYSTEM - Transmitter Capacity (x4-butten registers) | 8 |
| ADDITIONAL FEATURES - Courtesy Light | Optional |
| ADDITIONAL FEATURES - Safety Beam Compatibility | 1 x 3-wire Safety Beam |
| ADDITIONAL FEATURES - Weather Resistant Rating | IP24 |
| ADDITIONAL FEATURES - Lockout System | Keyed lockout for manual release. Electronic lockout for control panel buttons. |
| WARRANTY | 2 years/5,000 cycles |
