About this product

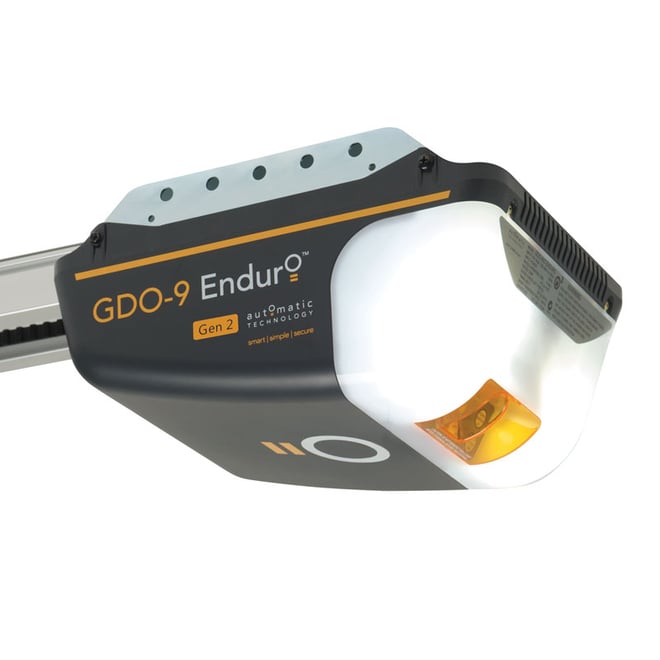

This high performance opener from ATA features a three speed motor and effortlessly powers sectional and tilt doors up to 200kg.
- Includes Opener with Courtesy Light, Two TriCode 128 Remote Controls and a Wall mounted TriCode control panel.
- The Enduro offers the best in performance with a powerful 1200N DC motor.
| Technical Specifications | |
|---|---|
| POWER - Input Voltage | 230-240V a.c. 50Hz |
| POWER - Transformer Rating | 150VA |
| POWER - Standby Power | 2.2W |
| POWER - Motor Type | 24V d.c. Permanent Magnet |
| POWER - Motor Power | 100W |
| POWER - Short-term Lifting Force | 1200N Standard Rail, 1400N Tilt Rail |
| DOOR SIZES - Maximum Door Weight | 200kg |
| DOOR SIZES - Rated Door Area | 18m² |
| DOOR SIZES - Typical Travel Speed (door dependent) | 90mm/sec (Setting 1), 110mm/sec (Setting 2), 130mm/sec (Setting 3) |
| TRANSMITTER SYSTEM - Receiver/Transmitter Frequency | Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz) |
| TRANSMITTER SYSTEM - Coding System | TrioCode™️128, code hopping |
| TRANSMITTER SYSTEM - Code Combinations | 3.4x10^38 code combinations |
| TRANSMITTER SYSTEM - Transmitter Capacity (x4-butten registers) | 64 |
| ADDITIONAL FEATURES - Courtesy Light | 2 x LED |
| ADDITIONAL FEATURES - Safety Beam Compatibility | 2 x Wireless or 2-wire Safety Beams |
| WARRANTY | 7 years/20,000 cycles |
| NETWORK COMPATIBLE | Ready for Smart Phone Control Kit |
