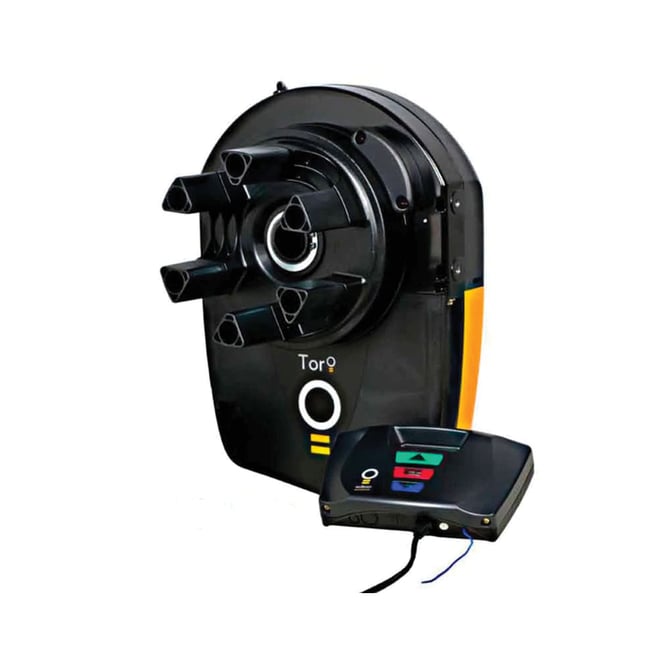

GDO10v3 Toro Commercial Rolling Door Opener

ATA

SKU: HB-6299

Unavailable in your state.

About this product

The Toro® offers sophisticated commercial roller door opening technology and superior pulling power. With built-in Battery Back-up and a wall-mounted control panel you can program a variety of operating modes for your security and safety. A marriage of immense power and sophisticated logic controls, the Toro® can cater for roll-up doors up to 28m2 and high duty cycles. The logic control system, with LCD screen, can manage up to 511 TrioCode™ Garage Door Remotes, and offers time clock controlled access programs, adjustable speed and obstruction settings. A full complement of controlling inputs and outputs are standard, including compatibility with up to three Wireless Safety Beams systems simultaneously. Rounding this out is Soft Start/Soft Stop, Door Profiling, Intelligent Safety System and variable Auto Close settings. Includes two PTX-5v2 Transmitters

  • Commercial Rolling Door Opener operates doors up to 28m2
  • Includes Battery Back Up as well as a Logic Console
  • The logic control system, with LCD screen, can manage up to 511 TrioCode™ Garage Door Remotes, and offers adjustable speed and obstruction settings.
  • Rounding this out is Soft Start/Soft Stop, Door Profiling, Intelligent Safety System and variable Auto Close settings.
  • 2 Year Industrial warranty giving peace of mind
  • Kit includes; 1 x GDO-10v3 Powerhead, 2 x PTX-5v2 Transmitters, 1 x L1 Logic Console (LCD wall control), 1 x Mounting Hardware & 1 x Instruction Manual
Technical Specifications
Input Voltage230-240V a.c. 1-phase
Transformer Rating150VA
Standby Power2.8W
Motor Type24V d.c. Permanent Magnet
Motor Power150W
Peak Driving Force1000N
Rated Duty Cycle1
Rated Door Area28m2
Typical Travel Speed (door and setting dependent)Variable via control panel
Receiver/Transmitter FrequencyMulti-frequency UHF FM (433.47, 433.92 & 434.37MHz)
Coding SystemCode hopping (non-linear encryption algorithm)
Code Combinations3.4x10^38 code combinations
Transmitter TypeTrioCode 128
Transmitter Capacity (x4-button registers)511
Courtesy LightOutput available
Safety Beam Compatibility3x Wireless/2-wire safety beams
LCD ScreenYes
Shipping Weight16kg
Shipping Width405mm
Shipping Height425mm
Shipping Length245mm
