About this product

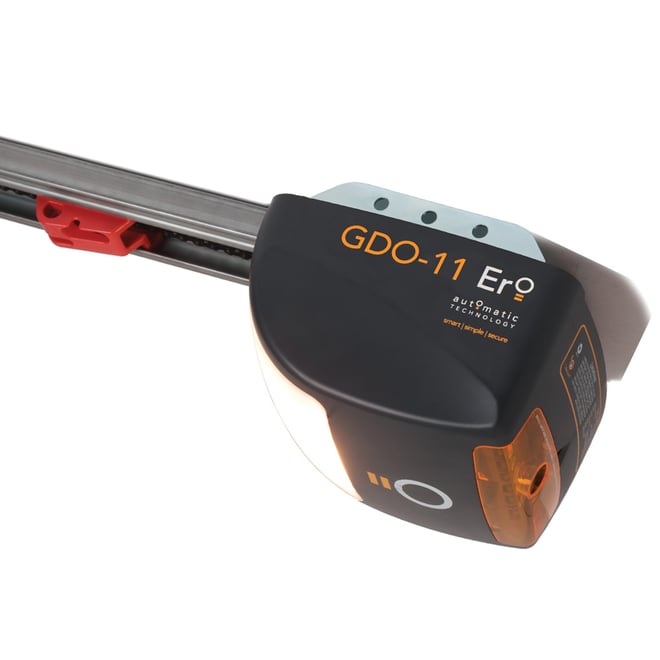

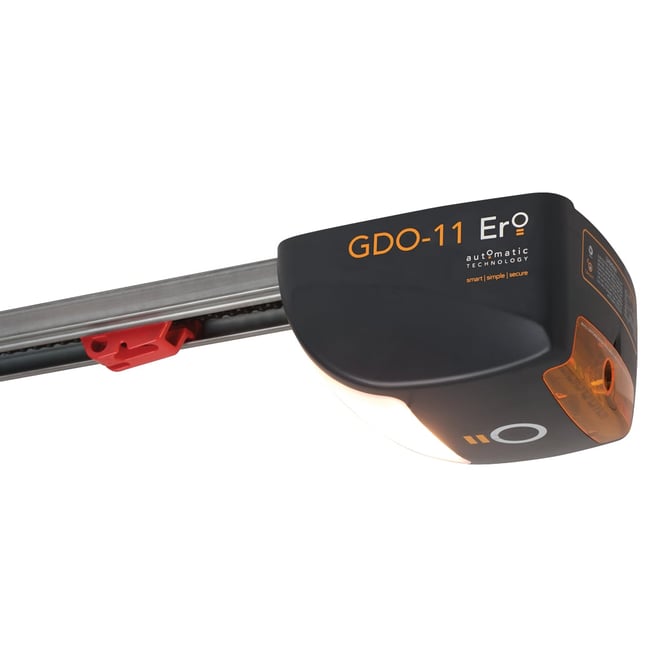

The Ero® garage door opener offers great value for money. With important features included, Ero®'s 650N motor will drive most standard residential sectional doors. It's the choice for new homebuyers and for all the right reasons. It comes standard with the important features of TrioCode?, Intelligent Safety System, Door Profiling and Soft Start/Soft Stop. It also includes a Standard Courtesy Light, and conveniently a service indicator to remind you when your door needs servicing. Includes three PTX-5v2 Transmitters
- Please note: C-rail is not included
- The TrioCode™128 remote control ensures secure and reliable home access. It transmits on three frequencies to defeat radio interference, and uses a 128-bit encryption protocol (with trillions upon trillions of random codes*) for the ultimate in security
- This DC motor generates a peak pulling force of 650N and reliably lifts garage doors up to 100kg of weightˆ.
- A built-in Courtesy Light means your immediate surrounds can be lit to provide security and convenience.
- The Series 2 Ero® is backed by a 5 year/10,000 cycle warranty*, giving you peace of mind.
- Kit includes; 1 x GDO-11 Powerhead, 3 x PTX-5v2 Transmitters, 1 x Mounting Hardware & 1 x Instruction Manual
- 5 year/10,000 cycles warranty giving peace of mind
| Technical Specifications | |
|---|---|
| Input Voltage | 230-240V a.c. 50Hz |
| Transformer Rating | 72VA |
| Standby Power | 2.2W |
| Motor Type | 24V d.c. Permanent Magnet |
| Motor Power | 100W |
| Short-term Lifting Force | 650N |
| Maximum Door Weight | 100kf% |
| Rated Door Area | 13.5m2 |
| Typical Travel Speed (door dependent) | 140mm/sec |
| Receiver/Transmitter Frequency | Multi-frequency UHF FM (433.47, 433.92 & 434.37MHz) |
| Coding System | TrioCode 128, code hopping |
| Code Combinations | 3.4x10^38 code combinations |
| Transmitter Capacity (x4-button registers) | 8 |
| Courtesy Light | 1x Festoon Globe |
| Safety Beam Compatibility | 1 x 2-wire PE Beam |
| Network Compatible | Ready for Smart Phone Control Kit |
| Shipping Weight | 7kg |
| Shipping Width | 433mm |
| Shipping Height | 249mm |
| Shipping Length | 179mm |
