Handy Hinged Door Storage Sheds
Attractive and secure hinged door sheds, with refined styling and features.

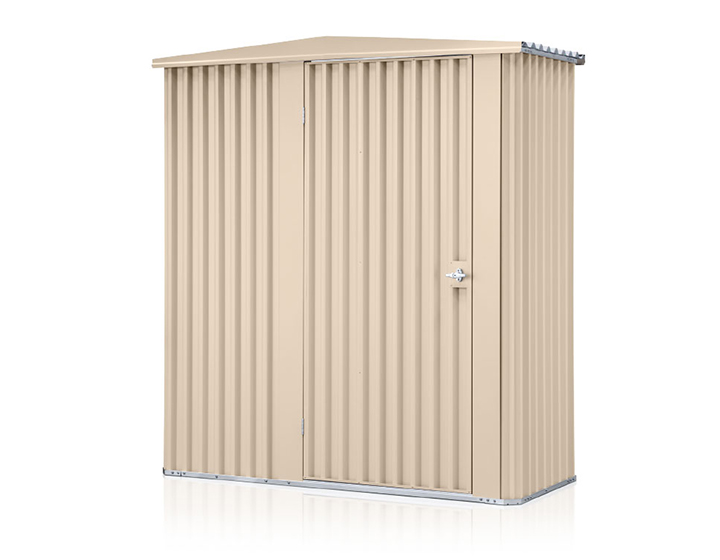

As soon as you open the door to a Stratco Handi-Mate Hinged Door Shed, the extra attention to detail and the refined finish is evident. Featuring an extra strong, double skinned door with a profiled exterior and a smooth, flat interior surface.
This attention to detail and refined appearance is carried throughout the large range of sizes on offer in the Stratco Handi-Mate Hinged Door line. Stratco Handi-Mate Sheds are available in a selection of popular colours, designed to compliment your outdoor area.
Note: Colour sheds have colour walls and doors with a Zincl/Al roof. Images shown are for illustrative purposes only.
Learn about our other Stratco Handi-Mate Sheds

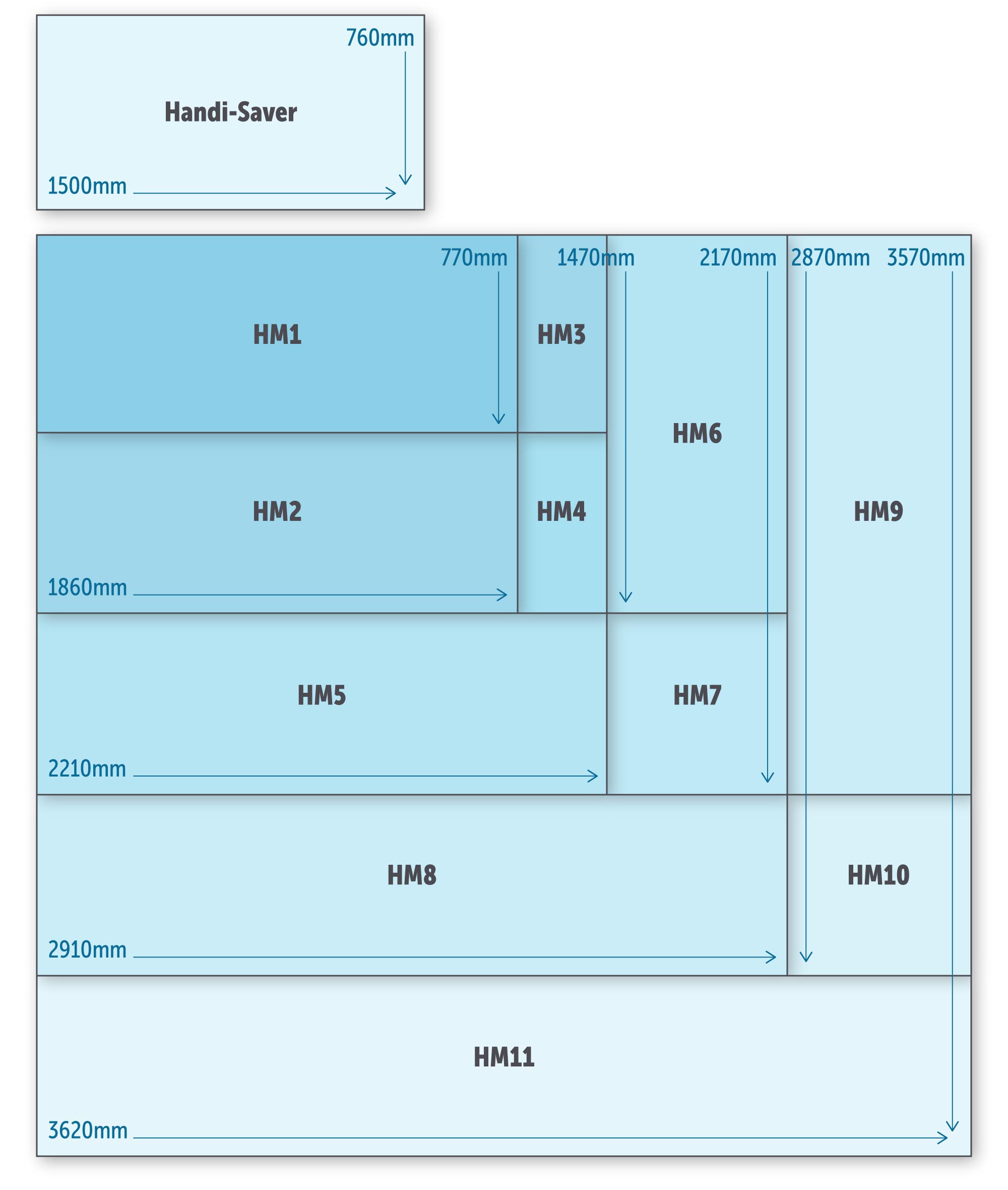

Stratco Handi-Mate Hinged Door Shed Sizes
| Shed Sizes | |||
| Model | Width (mm) | Depth (mm) | Wall Height (mm) |
|---|---|---|---|
| HM1 | 1860 | 770 | 1900 |
| HM2 | 1860 | 1470 | 1900 |
| HM3 | 2210 | 770 | 1900 |
| HM4 | 2210 | 1470 | 1900 |
| HM5 | 2210 | 2170 | 1900 |
| HM6 | 2910 | 1470 | 1900 |
| HM7 | 2910 | 2170 | 1900 |
| HM8 | 2910 | 2870 | 1900 |
| HM9 | 3620 | 2170 | 1900 |
| HM10 | 3620 | 2870 | 1900 |
| HM11 | 3620 | 3570 | 1900 |
Nominal sizes shown. Width and Depth are measured to outside of the roof.
| Shed Sizes |
||||
| Model | Length (mm) | Depth (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|
| HM1 | 2250 | 1000 | 120 | 60 |
| HM2 | 2250 | 1000 | 120 | 74 |
| HM3 | 2250 | 1000 | 120 | 80.5 |
| HM4 | 2250 | 1000 | 120 | 94.5 |
| HM5 | 2250 | 1000 | 120 | 93 |
| HM6 | 2250 | 1000 | 120 | 116 |
| HM7 - Box 1 of 2 | 2250 | 1000 | 120 | 80.5 |
| HM7 - Box 2 of 2 | 1965 | 800 | 40 | 35.5 |
| HM8 - Box 1 of 2 | 2250 | 1000 | 120 | 97 |
| HM8 - Box 2 of 2 | 1965 | 800 | 40 | 35.5 |
| HM9 - Box 1 of 2 | 2250 | 1000 | 120 | 99 |
| HM9 - Box 2 of 2 | 1965 | 800 | 40 | 35.5 |
| HM10 - Box 1 of 2 | 2250 | 1000 | 120 | 119 |
| HM10 - Box 2 of 2 | 1965 | 800 | 40 | 35.5 |
| HM11 - Box 1 of 3 | 2250 | 1000 | 120 | 113 |
| HM11 - Box 2 of 3 | 1965 | 800 | 40 | 35.5 |
| HM11 - Box 3 of 3 | 1965 | 800 | 40 | 35.5 |
| HM13 - Box 1 of 3 | 2250 | 1000 | 120 | 113 |
| HM13 - Box 2 of 3 | 1965 | 800 | 40 | 35.5 |
| HM13 - Box 3 of 3 | 1965 | 800 | 40 | .5 |
Measurements are to the outer sides of the box.
Brochures & Installation Guides
Refined Appearance
Clad in the attractive Smartspan profiled steel sheets, Stratco Handi-Mate Hinged Door Sheds feature a refined appearance and added security. Featuring a double skinned door with a smooth, flat interior surface and steel sheets that are riveted to the frame for extra strength. The door hinges are neatly concealed in the door jamb. And the shed includes a quality door lock and handle with two keys.
Easy to Build Sheds
Delivered in a convenient box, Handi-Mate Hinged Door sheds are the perfect do-it-yourself project. They are very easy to install. The shed door is pre-assembled and pre-attached to the door jamb. They come with clear and concise instructions, and all the components needed to complete the shed are in the box.
Stratco Handi-Mate sheds are easy to install yourself or Stratco can recommend an independent qualified installer to do the job for you.
Handi-Mate Hinged Door Features
- Attractive and refined styling
- Wide range of sizes
- Popular colours to choose from
- Range of security features
- Easy do-it-yourself installation
- Quality galvanised components
- Clad with the strong Smartspan® sheeting
- Hold down kits (lugs and dynabolts) are available
Note: Colour sheds have colour walls and doors with a Zincl/Al roof. Images shown are for illustrative purposes only.
