Versatile Slat Screening Solution
- Super strength powder coated aluminium
- Patented Pushloc frame holds slats without rivets, screws, nails or welding
- Blades do not warp, crack, or splinter
- Non-weld assembly for easy installation
- Powder coated and fi nished in Australia, for Australian conditions
- Low maintenance
- 15 Year Warranty*
*Warranty covers coating and colour integrity.
Available Colours
Solid Colour Finish
Eurowood Wood Grain Finish
Style and Quality
Ezi-Slat Screening and Fencing is an innovative, easy-to-install, aluminium slat screening system that offers the latest architectural style. Ezi-Slat Screening is tough, long-lasting, low maintenance, and can be adapted to suit a wide variety of applications. Simply choose your blade spacing, then refer to the screen heights below to determine how many blades are required.

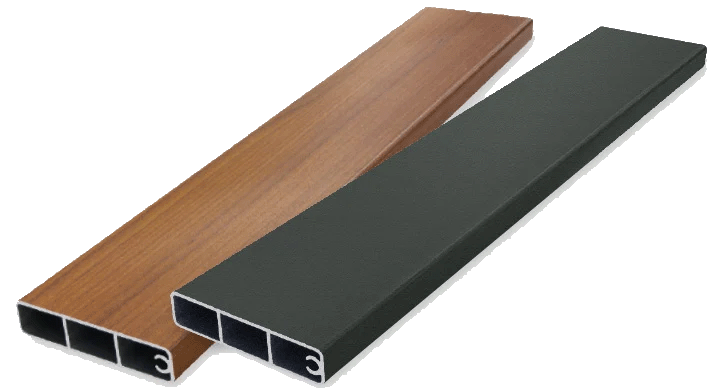

Ezi-Slat blades are available in 1.8m, 2.4m, 3.6m, 4.8m, or 6.0m lengths and can span up to 2400mm between supports.
Number of Slats Required
| 75mm Slats | |||
| 9mm Slat Spacing | 20mm Slat Spacing | ||
|---|---|---|---|
| Screen Height | No. of Slats | Screen Height | No. of Slats |
| 848mm | 10 | 969mm | 10 |
| 932mm | 11 | 1064mm | 11 |
| 1016mm | 12 | 1159mm | 12 |
| 1100mm | 13 | 1254mm | 13 |
| 1184mm | 14 | 1349mm | 14 |
| 1268mm | 15 | 1444mm | 15 |
| 1352mm | 16 | 1539mm | 16 |
| 1436mm | 17 | 1634mm | 17 |
| 1520mm | 18 | 1729mm | 18 |
| 1604mm | 19 | 1824mm | 19 |
| 1688mm | 20 | 1919mm | 20 |
| 1772mm | 21 | 2014mm | 21 |
| 1856mm | 22 | 2109mm | 22 |
| 1940mm | 23 | 2204mm | 23 |
| 2024mm | 24 | 2299mm | 24 |
| 2108mm | 25 | 2394mm | 25 |
| 2192mm | 26 | 2489mm | 26 |
| 2276mm | 27 | 2584mm | 27 |
| 2360mm | 28 | 2679mm | 28 |
| 90mm Slats | |||
| 9mm Slat Spacing | 20mm Slat Spacing | ||
|---|---|---|---|
| Screen Height | No. of Slats | Screen Height | No. of Slats |
| 999mm | 10 | 1120mm | 10 |
| 1098mm | 11 | 1230mm | 11 |
| 1197mm | 12 | 1340mm | 12 |
| 1296mm | 13 | 1450mm | 13 |
| 1395mm | 14 | 1560mm | 14 |
| 1494mm | 15 | 1670mm | 15 |
| 1593mm | 16 | 1780mm | 16 |
| 1692mm | 17 | 1890mm | 17 |
| 1791mm | 18 | 2000mm | 18 |
| 1890mm | 19 | 2110mm | 19 |
| 1989mm | 20 | 2220mm | 20 |
| 2088mm | 21 | 2330mm | 21 |
| 2187mm | 22 | 2440mm | 22 |
| 2286mm | 23 | 2550mm | 23 |
| 2385mm | 24 | ||
| 2484mm | 25 | ||
| 2583mm | 26 | ||
