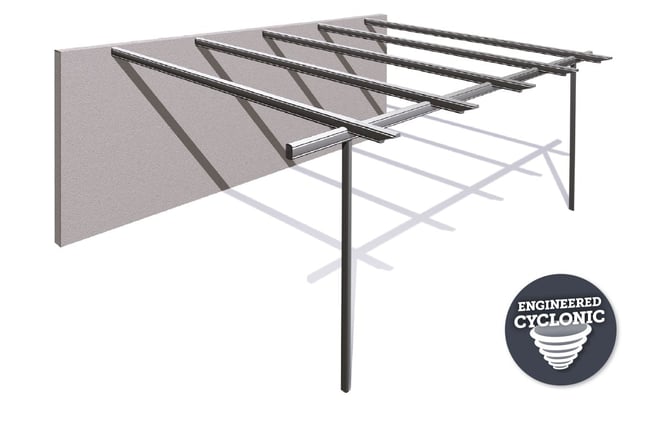

Outback® Pergola


SKU: Outback-Pergola

Create an inviting open-air setting with the Stratco Outback Pergola. Let the light in and improve the appearance of your home. Add a functional outdoor patio space to shade and protect recreation areas and delicate plants. Options also available for cyclonic areas. Your patio will be custom designed and made to suit your exact requirements. Whether you want to build it yourself or have it installed, we are here to help. Contact us for pricing and further details today.

Natural Filtered Light

Create shade and protection with the Outback Pergola

Create an inviting open-air setting that will let the light in and improve the appearance of your home. Ideal for defining and shading an outdoor space for both you and your delicate plants. Offering a range of options, the Outback Pergola allows you to leave the pergola open, clad it with shade cloth, or complete it with the innovative Shade Blade system.

Available Colours

Outback® Framing

*Sylvanite has a slight price premium due to the metallic paint finish.

Outback® Deck & Cgi


Outback® Deck & Cgi


View the Outback® Colour Chart for full range of available colours in your state.

I love the filtered light and open air feel of a pergola.

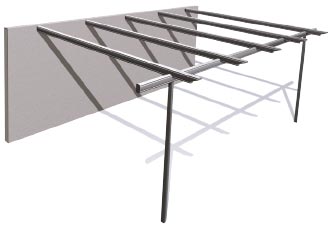

Patios Verandah Carport Outback Pergola Page

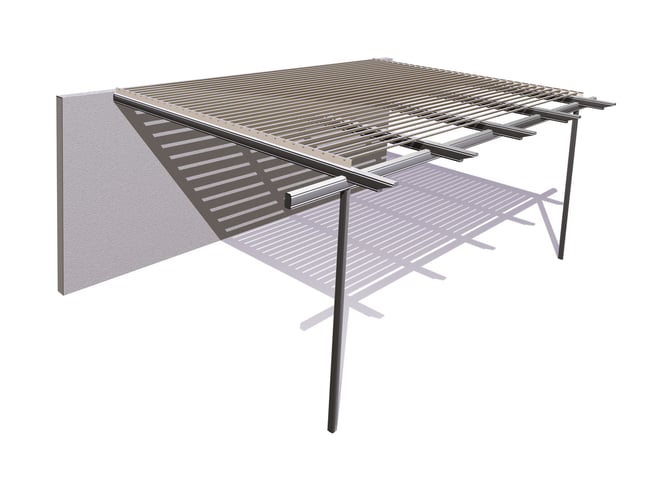

Outback Pergola

With massive spans of up to eight metres, it is available freestanding or attached. The beams can be left open or fitted with a range of shadecloth colours and shade levels for varying sun protection. The shadecloth is attached with a special clip for a neat finish. You can even embellish your pergola with optional profiled beam ends.

Patios Verandah Carport Outback Pergola Page

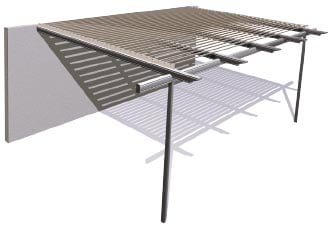

Patios Verandah Carport Outback Pergola Shade Blade Page

Pergola Shade Blade

For a more permanent option to create natural filtered light, the innovative Shade Blade system is ideal. Designed to attach to your pergola as an angled, fixed blade arrangement, Shade Blade lets the light and breeze in while providing shelter from the sun. The unique blade design has a small gutter to provide protection from light rain.

For added privacy, Shade Blade can be installed as a side screen. When used as a side screen, the support post centres should be a maximum of 1.2 metres apart.

Contact your nearest Stratco Home Improvement Store or Authorised Outback Dealer and let us show you the difference a Stratco Outback living solution can make to your home and lifestyle!

Patios Verandah Carport Outback Pergola Page

Stratco Outback®Stratco Outback Logo
Verandahs | Patios | Carports | Pergolas | Sunroof.

Your Outdoor Lifestyle

Experience the best of outdoor living with a Stratco Outback® Verandah, Patio or Carport. Open your home to the outside and create a patio space that can be enjoyed throughout the year. Under a Stratco Outback Patio you are protected from the elements, expanding your possibilities for entertaining, storage or enjoying your garden.

Strip Outback Range

Invest In Market Leading Quality

Available in a wide range of high gloss colours to complement your home, the Stratco Outback Patio features the sturdy Outback Deck, a steel roofing sheet with a clean, smooth underside that has a 'ceiling-like' finish.

This unique roofing material can span up to 4.5 metres, allowing the support beams to be placed far apart for a clean, uncluttered finish to your patio. The structure is formed with strong and elegant, chamfered and fluted beams and columns. Matching gutters tie the system together, while hidden fixing points and concealed brackets complete the smooth and refined appearance.

Your lifestyle, your choice, your design combination.

Design Flexibility - As Unique As You

Design freedom is central to the versatile Stratco Outback Verandah. Your Stratco Outback is custom designed and made for your exact requirements. You can choose from flat, gable, curved or opening roof, in either attached or freestanding. Or you can choose a combination of styles in a wide range of colours to suit your home, budget and lifestyle.

Outback Evolution - Modern Design Features

Patios Outback Edge Gutter

Edge Gutters. Striking architectural profile for a modern appearance.

Patios Outback Aluminium Timber Print Column

Larger Columns. Chunkier columns including 100 x 100mm steel and a 140 x 140mm extruded aluminium timber vinyl print column wrap for a premium look and low maintenance upkeep.

Outback Carports

Enjoy the feeling of entering a cool car on a hot day or avoiding a drenching when trying to bring the shopping in. All of the Outback range is suitable for installation as a carport.

You can express your personality with Stratco’s incredible range of designs and colours, and with the neat, beautiful finish only available on an Outback Patio, you can be sure you are showing your best front to the street. Choose from freestanding or house attached designs to really enhance the value and comfort of your home.

Genuine Peace Of MindStratco-Outback-Warranty-25-Years.png

Your durable Stratco Outback Patio will be a lasting and satisfying investment giving you many years of enjoyment.

It is protected by our own 25 year structural warranty (conditions apply), and when installed by an Authorised Outback Dealer you are covered by a one year installation warranty.

The Stratco Outback range has been thoroughly engineered and tested to comply with all relevant Australian Standards. The major components are made from strong high tensile steel, while the fixings and brackets are galvanised for a long useable life.

Get excited about painting your dream, your way.

Variety Of Colour Combinations

Stratco Outback Colours

The beautiful Stratco Outback range offers seven high gloss framework colours, a variety of high gloss cladding colour options and over 20 gutter colours to match or contrast with your existing home.

So whether you choose calming hues for your haven or bold tones for your entertaining area, or even filtered light for your family space, you will find a colour combination that's just right for you.

Speak to your Outback consultant for more ideas and colour samples.

Stratco is the only major manufacturer of verandahs, patios and carports that has a nationwide chain of home improvement stores and a highly professional network of Authorised Dealers. So you can be sure we have your outdoor lifestyle needs covered.

Talk to Stratco when making a decision about the best verandah or patio for your home. There is a location near you with stores in every major city including Sydney, Canberra, Melbourne, Adelaide, Perth, Darwin and Brisbane. Stratco have all the design and installation advice to make the process easy.

Maintenance: Regular maintenance is essential to maintain the good looks of all Stratco steel products and to ensure you receive the maximum life-span possible in your area. Washing with clean water must be frequent enough to prevent the accumulation of dust, salts, and pollutants or any other material that will reduce the life of the product. Stratco steel products that are regularly washed by rain require no additional maintenance. No Stratco steel structure or materials are recommended for use over, or in close proximity, to swimming pools or spas. No material that retains water (such as dirt or paving sand) should be placed against the columns. Care must be taken when determining the location of Stratco steel products so that they are not placed in close contact with sources of pollution or environmental factors that could affect the life of the steel. Refer to the 'Selection, Use and Maintenance' brochure for more information.


Maximum rafter spans (mm)
Wind Speed Rafter Spacing (B) Span (S) 120mm Beams
Attached Freestanding
W28N to 41N 600 8000 8000
900 7400 7400
1200 6800 6800
W50N 600 8000 7400
900 6800 6200
1200 5600 5600

N = Non-cyclonic wind classification

Patios Verandah Carport Outback Pergola Spans

Connection Details

Patios Verandah Carport Outback Pergola Connection


  1. Wall Bracket
  2. Purlin/Batten
  3. 120mm Rafter
  4. 120mm Fascia Beam
  5. 120mm End Cap
  6. Connection Sleeve
  7. Connection Bracket
  8. Pergola Profiled Beam End
  9. Profiled Beam End Cap
  10. Post Cap
  11. Post Bracket
  12. Column
  13. Footing Plate

Structural Sections

Patios Verandah Carport Outback Component Beam 2

150mm Beam

Patios Verandah Carport Outback Component Post 1

Post | Purlin

Design Options

Patios Verandah Carport Outback Pergola Spans
