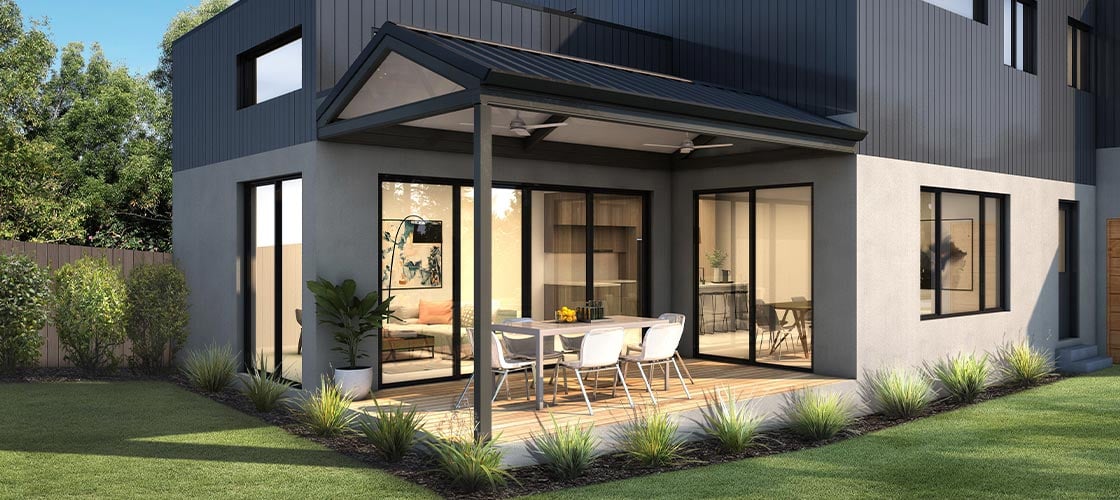

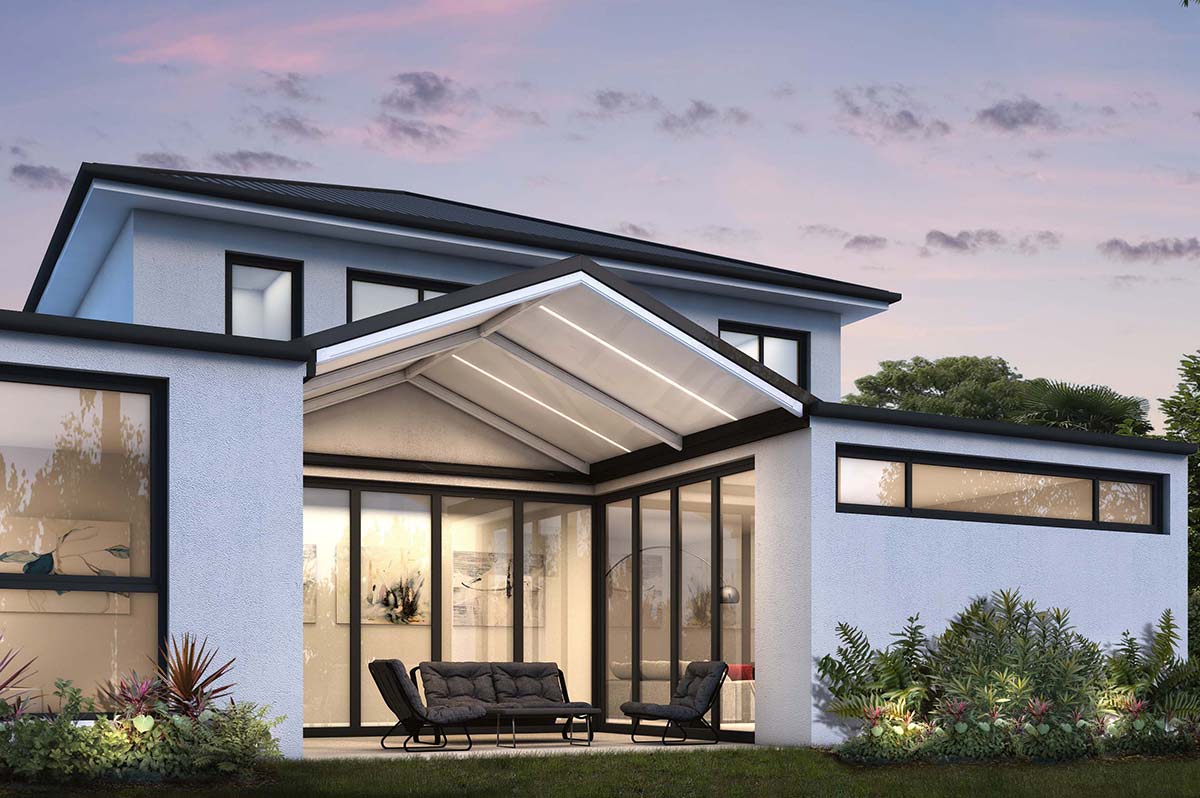

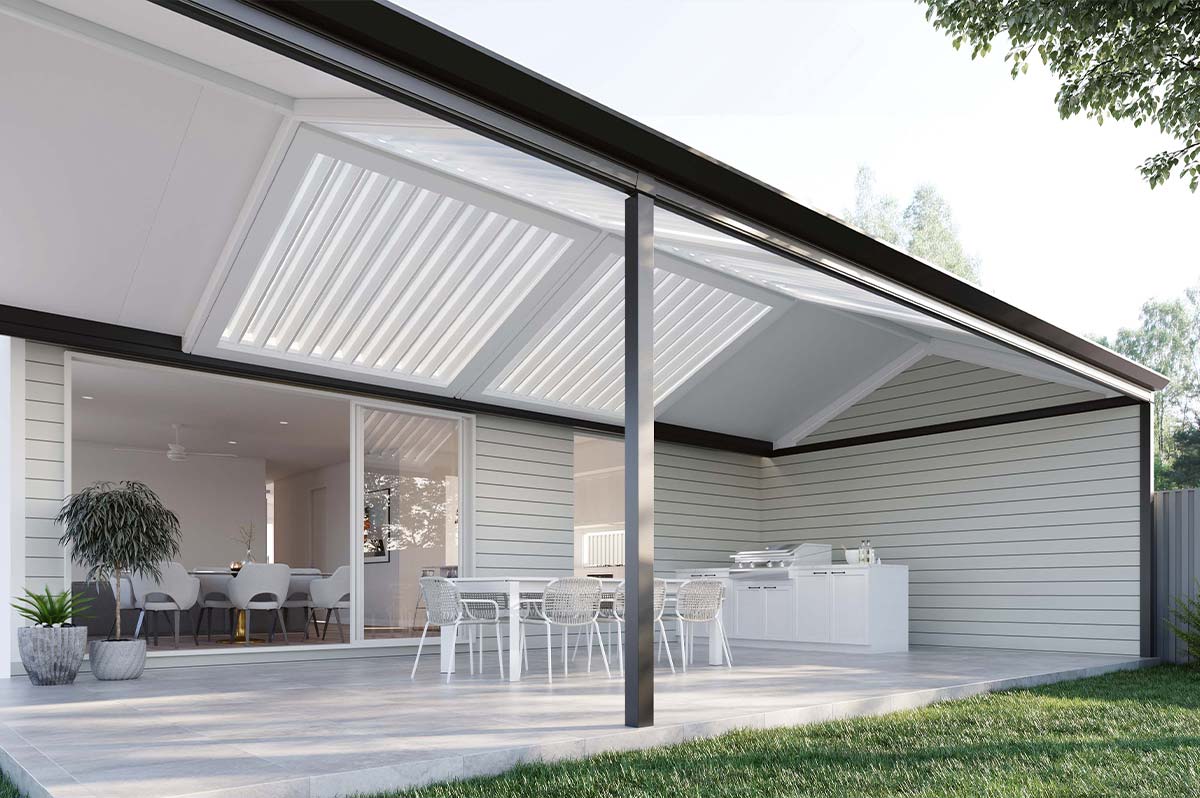

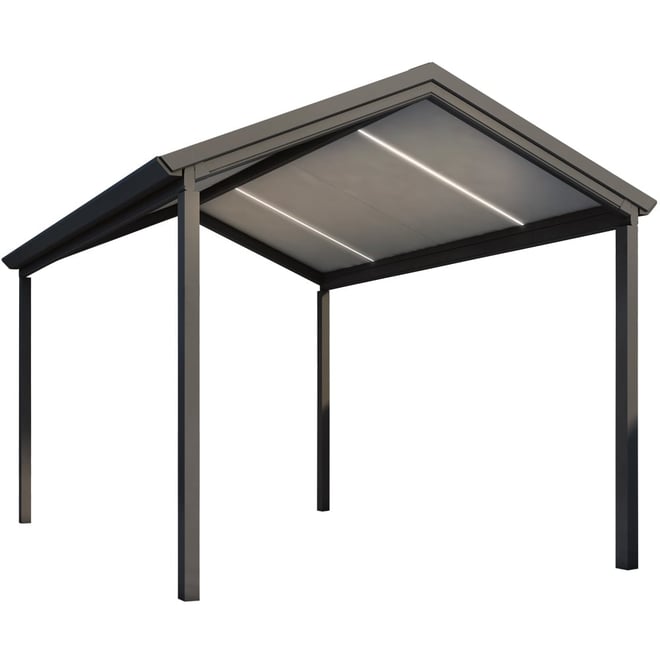

Outback® Gable

Stratco Outback^®
Verandahs | Patios | Carports | Pergolas | Sunroof.

Your Outdoor Lifestyle

Experience the best of outdoor living with a Stratco Outback^® Verandah, Patio or Carport. Open your home to the outside and create a patio space that can be enjoyed throughout the year. Under a Stratco Outback Patio you are protected from the elements, expanding your possibilities for entertaining, storage or enjoying your garden.

Invest In Market Leading Quality

Available in a wide range of high gloss colours to complement your home, the Stratco Outback Patio features the sturdy Outback Deck, a steel roofing sheet with a clean, smooth underside that has a 'ceiling-like' finish.

This unique roofing material can span up to 4.5 metres, allowing the support beams to be placed far apart for a clean, uncluttered finish to your patio. The structure is formed with strong and elegant, chamfered and fluted beams and columns. Matching gutters tie the system together, while hidden fixing points and concealed brackets complete the smooth and refined appearance.

Your lifestyle, your choice, your design combination.

Design Flexibility - As Unique As You

Design freedom is central to the versatile Stratco Outback Verandah. Your Stratco Outback is custom designed and made for your exact requirements. You can choose from flat, gable, curved or opening roof, in either attached or freestanding. Or you can choose a combination of styles in a wide range of colours to suit your home, budget and lifestyle.

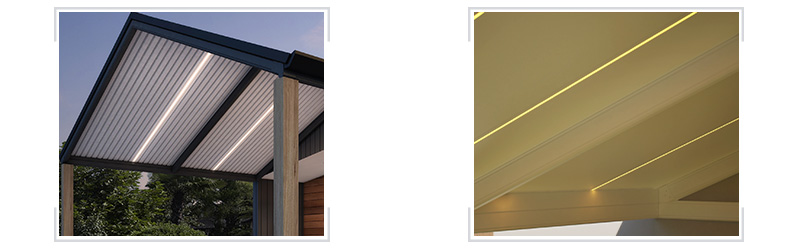

Outback Evolution - Modern Design Features

Outback Carports

Enjoy the feeling of entering a cool car on a hot day or avoiding a drenching when trying to bring the shopping in. All of the Outback range is suitable for installation as a carport.

You can express your personality with Stratco’s incredible range of designs and colours, and with the neat, beautiful finish only available on an Outback Patio, you can be sure you are showing your best front to the street. Choose from freestanding or house attached designs to really enhance the value and comfort of your home.

Genuine Peace Of Mind

Your durable Stratco Outback Patio will be a lasting and satisfying investment giving you many years of enjoyment.

It is protected by our own 25 year structural warranty (conditions apply), and when installed by an Authorised Outback Dealer you are covered by a one year installation warranty.

The Stratco Outback range has been thoroughly engineered and tested to comply with all relevant Australian Standards. The major components are made from strong high tensile steel, while the fixings and brackets are galvanised for a long useable life.

Get excited about painting your dream, your way.

Variety Of Colour Combinations

The beautiful Stratco Outback range offers seven high gloss framework colours, a variety of high gloss cladding colour options and over 20 gutter colours to match or contrast with your existing home.

So whether you choose calming hues for your haven or bold tones for your entertaining area, or even filtered light for your family space, you will find a colour combination that's just right for you.

Speak to your Outback consultant for more ideas and colour samples.

Stratco is the only major manufacturer of verandahs, patios and carports that has a nationwide chain of home improvement stores and a highly professional network of Authorised Dealers. So you can be sure we have your outdoor lifestyle needs covered.

Talk to Stratco when making a decision about the best verandah or patio for your home. There is a location near you with stores in every major city including Sydney, Canberra, Melbourne, Adelaide, Perth, Darwin and Brisbane. Stratco have all the design and installation advice to make the process easy.

Maintenance: Regular maintenance is essential to maintain the good looks of all Stratco steel products and to ensure you receive the maximum life-span possible in your area. Washing with clean water must be frequent enough to prevent the accumulation of dust, salts, and pollutants or any other material that will reduce the life of the product. Stratco steel products that are regularly washed by rain require no additional maintenance. No Stratco steel structure or materials are recommended for use over, or in close proximity, to swimming pools or spas. No material that retains water (such as dirt or paving sand) should be placed against the columns. Care must be taken when determining the location of Stratco steel products so that they are not placed in close contact with sources of pollution or environmental factors that could affect the life of the steel. Refer to the 'Selection, Use and Maintenance' brochure for more information.

Maximum Spans

* Minimum of four columns along the length of the gable unit on the opposite side of the attachment when solid infill is used.
† Height limited to 2400mm for flat unit type 1A.

* Minimum of four columns along the length of the gable unit on the opposite side of the attachment when a solid infill is used.
† Height limited to 2400mm.
N = Non-cyclonic wind classification.
C = Cyclonic wind classification.

Connection Details

Clearspan Gable

Multispan Gable

Components

Installation Video

Fixing Details

For Non-Cyclonic Areas

Two 12 x 20mm self drilling screws per pan at each support and two 3.2mm sealed aluminium rivets per pan at the back channel. If decking runs parallel to the back channel, secure to channel with rivets at maximum 200mm centres. All screws require neoprene washers.

For Cyclonic Areas

Three 12 x 20mm self drilling screws per pan at each support. For deck spans less than 3600mm, two self drilling screws per pan are to be used on the fascia beam. Three 4.8mm sealed aluminium rivets per pan (or 150mm centres if sheets are parallel) are to be used on the back channel. All screws require neoprene washers.

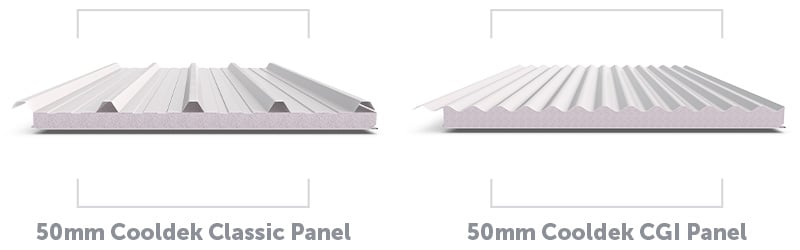

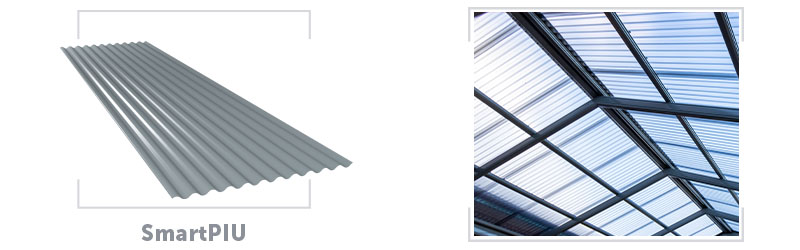

Roof Sheeting

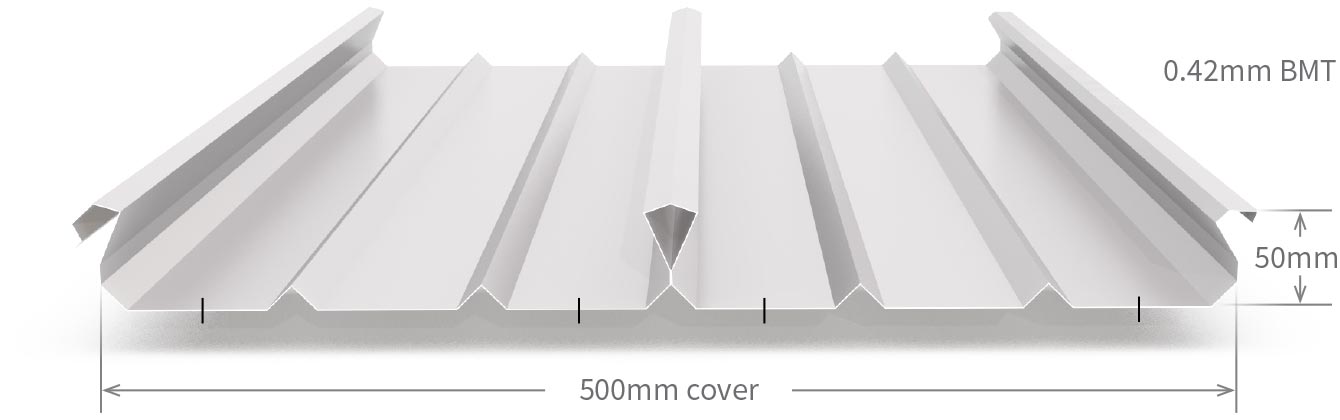

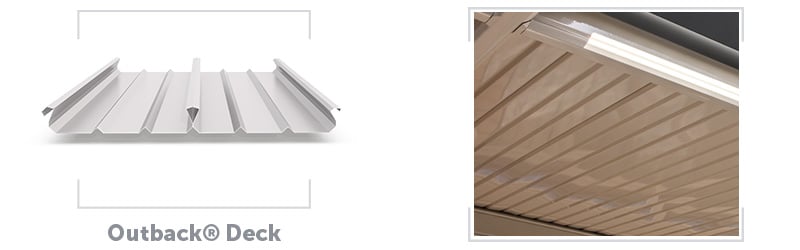

Outback Deck

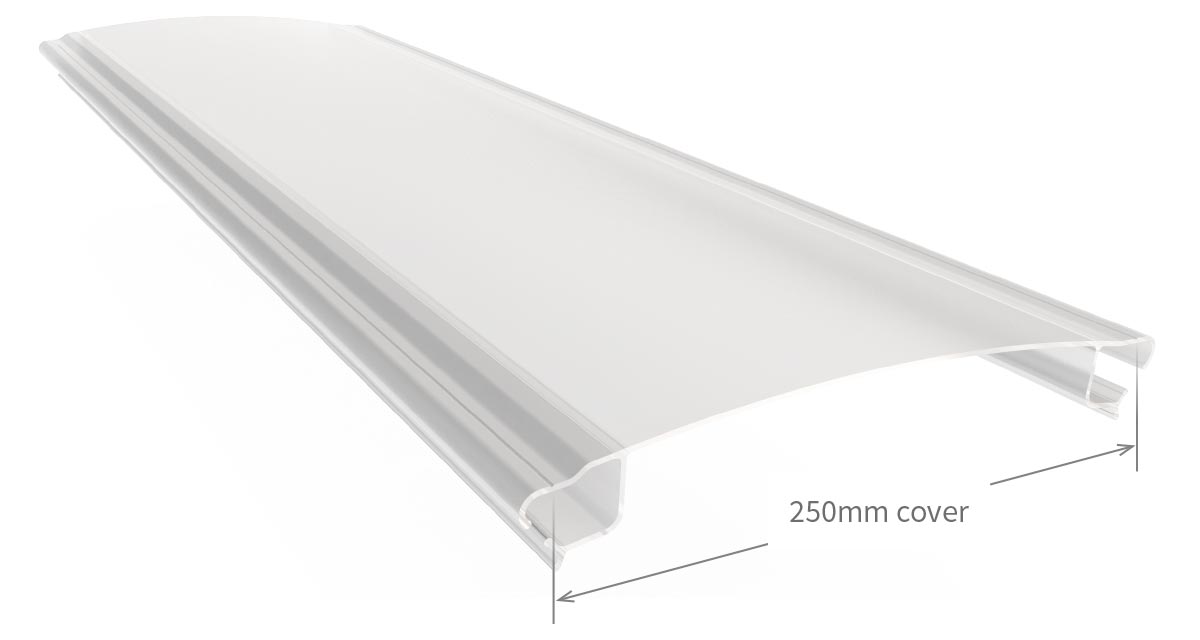

Outback Rooflite

Structural Sections

Design Considerations

Gable units attached between a flat or Sunroof unit and an existing structure

Gable units which are attached between a flat or Sunroof unit (excluding pergolas) and an existing house, are only considered attached if the gable unit is attached to the existing house (C) for its full length (L) and the longest side of the combined unit (B) does not exceed twice the gable unit length (L). The flat or Sunroof unit in this case can be considered attached. This style requires all coloumns to be embedded into footings.

The unit is considered attached if:  B = 2 L or less, and C = L

Gable units attached to a flat or Sunroof unit on one or both sides

Gable units which are attached on one or both sides to flat or Sunroof units, (excluding pergolas) must be attached to a house for at least 75% of the gable opening length (O) to be considered attached. Flat or Sunroof units must be deemed attached as detailed in the flat or Sunroof unit section below to allow the gable unit to be considered attached.

Gable units are considered attached on both sides if both the flat 1 and 2 comply with the attachment rules for flat or Sunroof units as detailed below. Gable units are considered attached on one side if only one flat or Sunroof unit exists and it complies with the attachment rules for flat or Sunroof units as detailed below.

The gable | curved unit is considered attached if:  C = 0.75 of O or more

Design Options

When designing an Outback Patio, consideration should be given to both the roof sheet direction, and the orientation of any openings and overhangs involved. These are often determined by appearence and drainage requirements. Some of the normal configurations are shown below. Contact Stratco if assistance is required.

Attached to a wall or fascia on one side only.

Attached to a flat or Sunroof unit on one side and a wall or fascia on one end.

Attached both sides to the flat or Sunroof unit and the wall or fascia on the opposite side.

Attached to the flat or Sunroof unit on both sides and the wall or fascia on one end.

Note: When attaching gable patios to Sunroof units, please refer to 'The Rules of Attachment to Standard Outback Systems' in the 'Outback Sunroof Span Tables Book'.
