Available for worldwide delivery. Stratco Core Trays are designed for the mining and exploration industry to store and transport core samples. Plastic and metal Core Trays are available. They are stackable, come in a range of sizes with various colour options and can be custom made to suit your requirements. Call David Muller for a free quote on 1300 165 165.

Stratco are AUSTMINE members, partnering with Australia's leading mining industry professionals to promote the global advancement of technology and innovation in mining.

Austmine Members

Plastic and Metal Core Trays

Quality mining core sample trays, in a huge range of sizes and colours, supplied worldwide

Plastic, injection moulded polypropylene core trays, manufactured by Stratco in highly visible white plastic, with the highest level of UV protection. Stackable trays, available in B, N, H and P sizes with 1000mm x 385mm dimensions.

And quality zinc/al metal core trays that are available assembled or unassembled for easy transport. Strong, stackable core trays that are designed for safety with chamfered ends and optional handles. Sizes BQ2, HQ, NQ2 and PQ available.

International Delivery

Whether you're looking for Core Trays in Africa, South America, Asia or anywhere else in the world, we can supply a core tray solution to meet your needs.  Request a free quote below or call us on +61 1300 165 165 to discuss our international core tray solutions with David Muller.

Colour Options

Stratco has the flexibility to manufacture core trays in a range of different colours (subject to quantity), including black trays, which are preferred by State Government Drill Core Reference Libraries, when using the HyLogger Spectral Scanner.  Stratco’s core trays are manufactured using virgin grade plastics, which means there are less impurities within the actual core tray itself. This improves the accuracy of the HyLogger core reading.

NEW & IMPROVED Corebox Available Now

The new Stratco Corebox plastic core tray has been developed through close consultation with mining industry experts to create a new standard in core tray functionality and usability. The Stratco Corebox is manufactured using polypropylene to prevent corrosion of the tray and eliminate the potential for cross contamination of the stored ore – even those that are highly acidic, highly alkaline or are stored in high levels of humidity.  Download the Corebox Brochure for more information.

MarknStamp Dot Peen Marking Machine

We also offer the MarknStamp Dot Peen Marking Machine, the perfect solution for making quick, easy and lasting markings on your Stratco core trays.  Learn more about the MarknStamp Dot Peen Marking Machine.

Get A Free Core Tray Quote

Plastic Core Trays

NEW & IMPROVED Corebox Available Now

The new Stratco Corebox plastic core tray has been developed through close consultation with mining industry experts to create a new standard in core tray functionality and usability. The Stratco Corebox is manufactured using polypropylene to prevent corrosion of the tray and eliminate the potential for cross contamination of the stored ore – even those that are highly acidic, highly alkaline or are stored in high levels of humidity.  Download the Corebox Brochure for more information.

Corebox_Detail_328x230_1.jpg Corebox_Detail_328x230_2.jpg Corebox_Detail_328x230_3.jpg Corebox_Detail_328x230_4.jpg

Invest In Quality

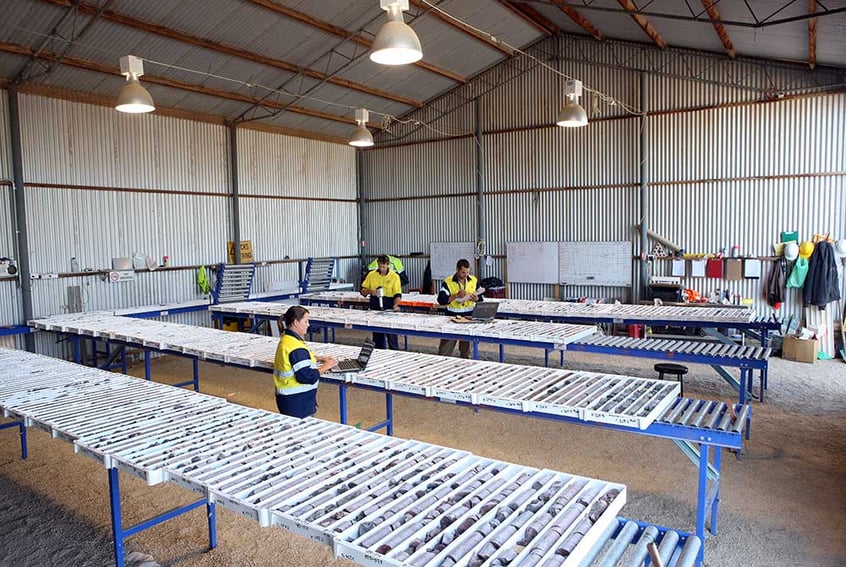

Stratco manufacture the plastic core trays from injection moulded polypropylene to ensure it is corrosion proof and cannot cross contaminate the stored ore, even those ores that are highly acidic or highly alkaline, or in high levels of humidity. The Core Trays are available in white or grey virgin or recycled plastic. The white is a popular option as it offers great visibility underground and at night. Virgin plastics are used for the highest possible level of UV protection.

Versatile

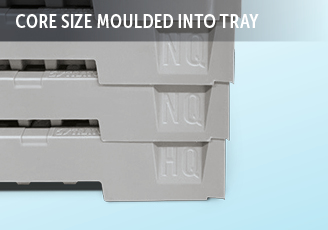

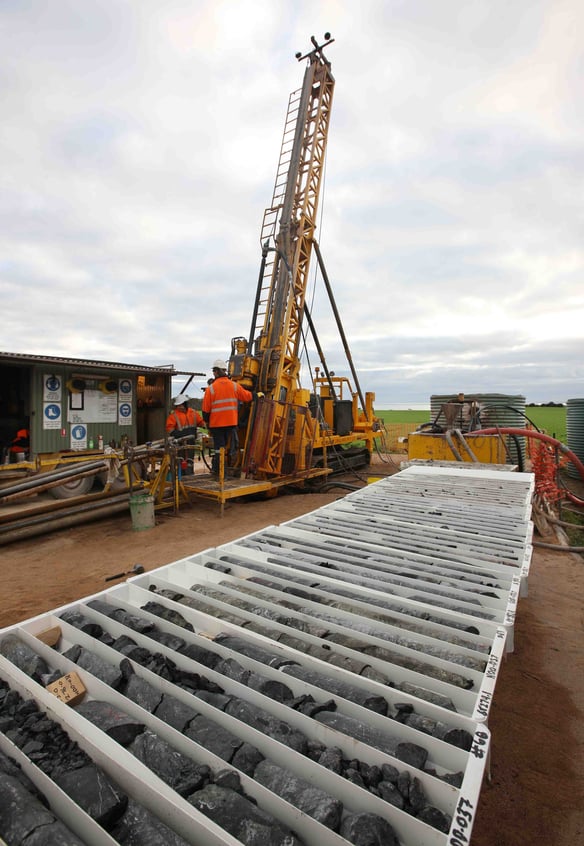

The Corebox is available in 2 sizes, HQ and NQ, while the Orebox is available in B, N, H and P sizes. The Orebox versions all come in standard dimensions of 1000mm x 385mm for efficient packing in standard shipping containers. The full height flute dividers accommodate all core sizes.

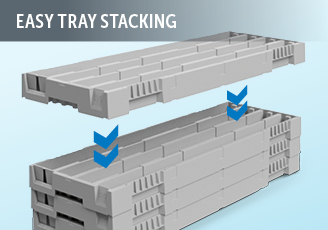

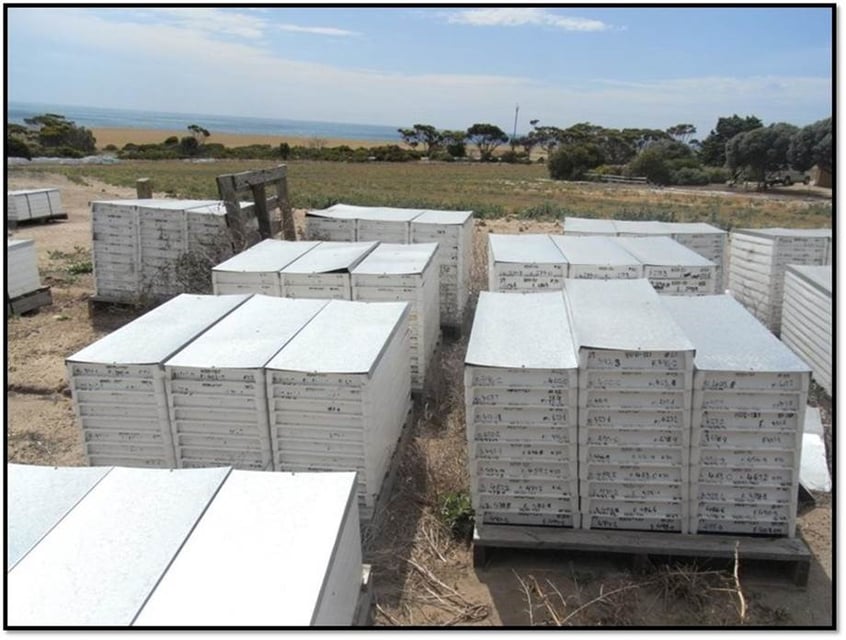

Our Plastic Core Trays are designed to be stored in stacks on pallets or similar hard stand areas. Each tray is equipped with interlocking lugs at each corner that mate with the tray above, ensuring stable stacking. The stacks of trays are readily strapped for transport.

Request A Free Core Tray Quote

Core Tray Lids

Stratco Core Tray lids are designed to fit snuggly. This prevents the core samples from being contaminated and keeps them safe and dry. Stratco Core Tray lids are made from long lasting zinc/al, with return folded edges for increased strength and to reduce cut injuries.

Core Tray Markers

Core Tray Markers are available for Corebox and Orebox NQ, HQ and PQ sizes. They fit snugly into the tray and do not reduce the space available for core storage. The flat top provides a broad area for writing.

Superior Design

Made from injection moulded, UV stabilised polypropylene plastic

  • Totally corrosion proof.
  • No corrosion or cross-contamination of stored ore.
  • No magnetic interference with core evaluation.
  • Excellent longevity and durability.
  • Increased safety; no cuts or handling burns.
  • Recyclable.

Made from your choice of recycled or 100% virgin plastic in white or grey

  • White option is clearly visible at night and underground.
  • Easy to write on.
  • UV stabilised to ensure longevity in the field

One-piece moulding with no pop rivets or welds

  • Increased strength and reduced failure rate.
  • Reduced wastage.
  • Increased safety.

Designed for easy handling

  • Built-in handles for easy handling and increased safety.
  • Rounded corners for safety and looks.
  • Corner dimples for easy stacking and transportation.
  • Computer modelled for mechanical strength.
  • Unique sliding tracks for easy sliding on or off of other stacked trays.
  • Positive locking of stacked core trays with reinforced tie-down points.
  • Flat base to enable the tray to be used on ball bearing or conveyor belts.

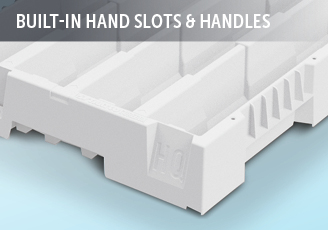

  • Hand slots and handles on all four sides to facilitate safe handling.

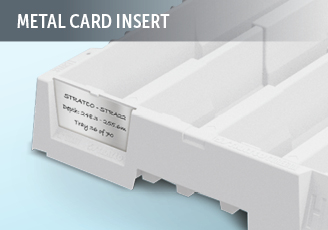

  • Card insert for easy identification of core samples.
  • Clearly marked Start and Finish points to assist with identification.
  • Unique separation flute design that clearly identifies 100mm increments.
  • Separation flute spine width enables identification notes to be written adjacent to the sample.
  • Unique drainage system keeps the core dry from top to bottom.
  • Can be used in conjunction with the Stratco Dot Peen Marking Machine for permanent identification, including QR code capabilities.

Optional metal storage lids

  • Designed to allow simple stacking.
  • Snug fit lid prevents contaminate ingress and keeps vermin and insects out.
  • Made from long lasting zinc/al.
  • Keeps cores safe and dry.
  • Return folded edges add strength and reduce cut injuries.

Plastic Core Tray Dimensions

Mining Core Tray Sample Tray Plastic 01
Mining Core Tray Sample Tray Plastic 02
Mining Core Tray Sample Tray Plastic 03
Mining Core Tray Sample Tray Plastic 04
Plastic Core Tray Dimensions
Tray Size Length Width Flutes Flute Height Individual Core Length Total Core Length
Orebox B-9 (BQ) 1000mm 385mm 9 41.30mm 950mm 8.57m
Orebox N-7 (NQ) 1000mm 385mm 7 53.50mm 950mm 6.66m
Orebox H-5 (HQ) 1000mm 385mm 5 69.30mm 950mm 4.76m
Orebox P-4 (PQ) 1000mm 385mm 4 92.50mm 950mm 3.81m
Plastic Core Tray Packaging
Tray Size Pallet Size Pallet Weight Trays Per Pallet
Orebox B-9 (BQ) 1.0m x 1.16m x 1.15m 155kg 75
Orebox N-7 (NQ) 1.0m x 1.16m x 1.13m 120kg 57
Orebox H-5 (HQ) 1.0m x 1.16m x 1.13m 95kg 45
Orebox P-4 (PQ) 1.0m x 1.16m x 1.12m 80kg 33

Metal Core Trays

Quality Sample Trays

Manufactured from high quality zinc/al, Stratco Metal Core Trays are designed for a long useable life. Stratco Metal Core Trays come in BQ2, HQ, NQ2 and PQ sizes.

Stratco Metal Core Trays feature:

  • Available assembled or unassembled for easy transport.
  • Safety edges to prevent cut injuries.
  • Drainage slots to allow for external drainage to prevent cross-contamination of core samples.
  • Strong and attractive chamfered ends.
  • All trays can hold one full metre of core per flute.
  • Detachable handles for safe and easy handling.
  • Optional lugs allow safe and easy stacking for storage and transportation.

Request A Free Core Tray Quote

Assembled Core Tray Dimensions

Dimensions
Tray Size Length Width Flutes Trays Per Pallet
Corebox HQ 1070mm 380mm 4
Corebox NQ 1070mm 380mm 5
Orebox BQ2 1038mm 372mm 8 75
Orebox NQ2 1038mm 343mm 6 60
Orebox NQ2 1000mm 400mm 6 52
Orebox HQ 1038mm 372mm 5 48
Orebox PQ 1038mm 383mm 4 36

Unassembled Core Trays

Stratco is able to supply our steel Core Trays either fully assembled or in broken down form for assembly on-site. Shipping unassembled trays delivers significant freight cost savings with the ability to fit almost double the number of units into a container. It also means that the local community can participate gainfully in your exploration project by assembling the core trays on-site. This can be particularly important in gaining community support for projects in developing economies.

Stratco's unassembled Core Trays have all the features of the assembled units and we supply everything required, including tray bodies, stop-ends, rivets, optional stacking lugs, assembly instructions and rivet guns if requested. All necessary rivet holes in our tray bodies are predrilled to simplify the assembly.

Unassembled Core Trays are packed in cartons to ensure they arrive on-site undamaged and ready for immediate assembly and use. The following table outlines the packing quantities.

Packing Quantities
Tray Size Trays Per Carton Cartons per 20' Container Cartons per 40' HC Container
Orebox NQ2 12 150 (1,800 trays) 396 (4,752 trays)
Orebox HQ 10 150 (1,500 trays) 396 (3,960 trays)
Orebox PQ 8 150 (1,200 trays) 396 (3,168 trays)
